EPCOS
| Part Number | B65813J0000R087 | Manufacturer | EPCOS |
|---|---|---|---|

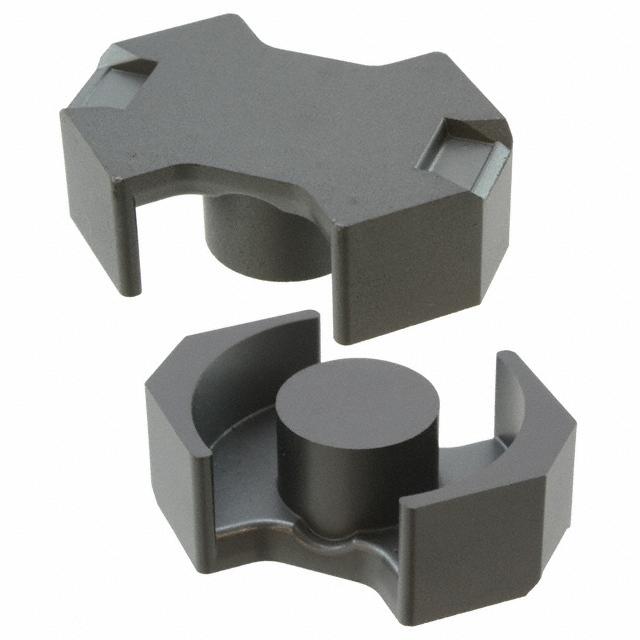

| Description | FERRITE CORE RM 4.2UH N87 2PCS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 43413 pcs | Data sheet | B65813J0000R087.pdf |
| Width | 13.50mm | Tolerance | -20%, +30% |
| Supplier Device Package | RM 10 | Series | B65813 |
| Other Names | 495-5280 B65813J R 87 B65813JR87 B65813JR87-ND |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Minimum Core Cross Section (Amin) mm² | 90 | Material | N87 |
| Manufacturer Standard Lead Time | 24 Weeks | Length | 28.50mm |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Initial Permeability (µi) | 2200 |
| Inductance Factor (Al) | 4.2µH | Height | 9.35mm |
| Gap | Ungapped | Finish | Uncoated |
| Effective Permeability (µe) | 1500 | Effective Magnetic Volume (Ve) mm³ | 4310 |
| Effective Length (le) mm | 44 | Effective Area (Ae) mm² | 98 |
| Diameter | - | Core Type | RM |
| Core Factor (ΣI/A) mm1 | 0.45 |
