EPCOS
| Part Number | B65805J0000R030 | Manufacturer | EPCOS |
|---|---|---|---|

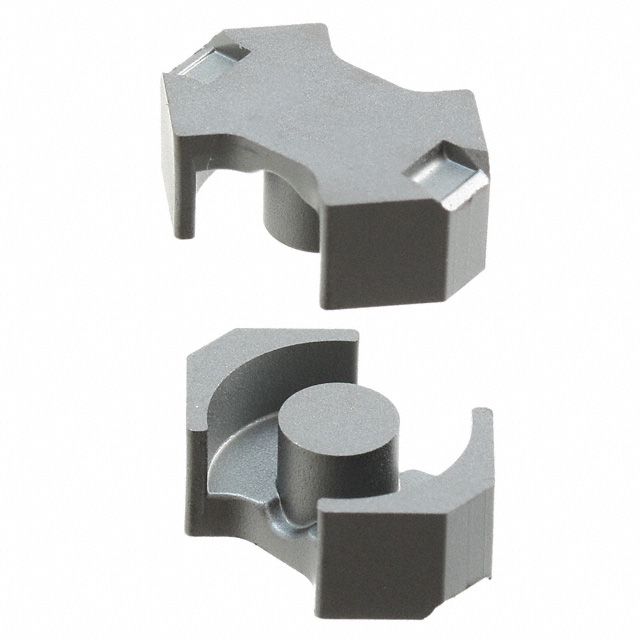

| Description | FERRITE CORE RM 3.5UH N30 2PCS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 71210 pcs | Data sheet | B65805J0000R030.pdf |
| Width | 6.80mm | Tolerance | -20%, +30% |
| Supplier Device Package | RM 5 | Series | B65805 |
| Other Names | 495-5205 B65805J R 30 B65805JR30 B65805JR30-ND |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Minimum Core Cross Section (Amin) mm² | 18 | Material | N30 |
| Manufacturer Standard Lead Time | 27 Weeks | Length | 14.60mm |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Initial Permeability (µi) | 4300 |
| Inductance Factor (Al) | 3.5µH | Height | 5.25mm |
| Gap | Ungapped | Finish | Uncoated |
| Effective Permeability (µe) | 2590 | Effective Magnetic Volume (Ve) mm³ | 526 |
| Effective Length (le) mm | 22.1 | Effective Area (Ae) mm² | 23.8 |
| Diameter | - | Core Type | RM |
| Core Factor (ΣI/A) mm1 | 0.93 |
