B65686A0315A027

EPCOS

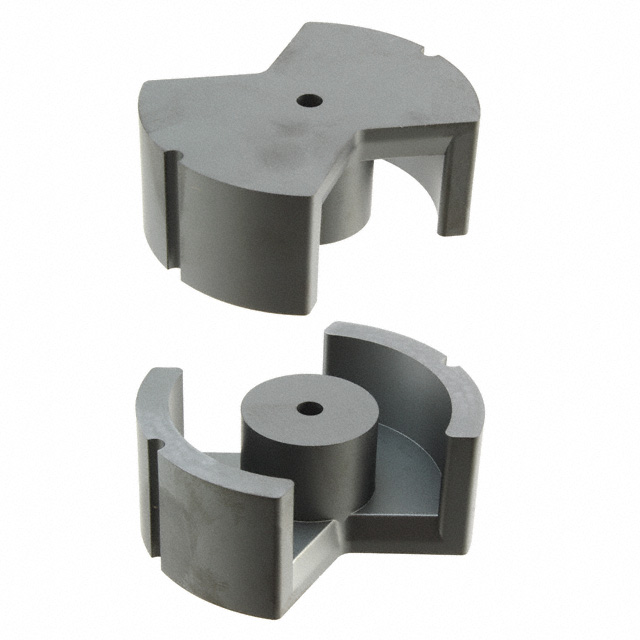

Image may be representation. See specifications for product details.

Product Overview

Part Number:	B65686A0315A027
Manufacturer/Brand:	EPCOS
Product description	FERRITE CORE PM 315NH N27 2PCS
Datasheets:	B65686A0315A027.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1917 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1917 pcs

Reference Price (In US Dollars)

1 pcs: $19.962

10 pcs: $17.744

25 pcs: $14.639

50 pcs: $14.195

100 pcs: $12.421

250 pcs: $11.534

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$19.962

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of B65686A0315A027

Part Number	B65686A0315A027	Manufacturer	EPCOS
Description	FERRITE CORE PM 315NH N27 2PCS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1917 pcs	Data sheet	B65686A0315A027.pdf
Width	-	Tolerance	±3%
Supplier Device Package	PM 74 x 59	Series	B65686
Other Names	495-5176 B65686A 315A 27 B65686A315A27 B65686A315A27-ND	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Minimum Core Cross Section (Amin) mm²	630	Material	N27
Manufacturer Standard Lead Time	24 Weeks	Length	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Initial Permeability (µi)	2000
Inductance Factor (Al)	315nH	Height	29.50mm
Gap	Gapped	Finish	Uncoated
Effective Permeability (µe)	41	Effective Magnetic Volume (Ve) mm³	101000
Effective Length (le) mm	128	Effective Area (Ae) mm²	790
Diameter	74.00mm	Core Type	PM
Core Factor (ΣI/A) mm1	0.162
