B65684A0000R027

EPCOS

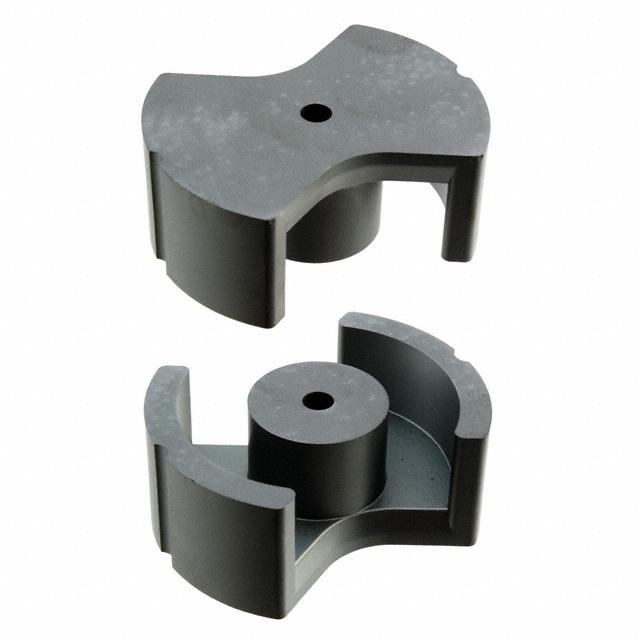

Image may be representation. See specifications for product details.

Product Overview

Part Number:	B65684A0000R027
Manufacturer/Brand:	EPCOS
Product description	FERRITE CORE PM 9.2UH N27 2PCS
Datasheets:	B65684A0000R027.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4066 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 4066 pcs

Reference Price (In US Dollars)

1 pcs: $8.648

10 pcs: $7.737

25 pcs: $6.099

50 pcs: $5.917

100 pcs: $5.188

250 pcs: $4.788

500 pcs: $4.588

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$8.648

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of B65684A0000R027

Part Number	B65684A0000R027	Manufacturer	EPCOS
Description	FERRITE CORE PM 9.2UH N27 2PCS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4066 pcs	Data sheet	B65684A0000R027.pdf
Width	-	Tolerance	-20%, +30%
Supplier Device Package	PM 62 x 49	Series	B65684
Other Names	495-5171 B65684A R 27 B65684AR27 B65684AR27-ND	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Minimum Core Cross Section (Amin) mm²	470	Material	N27
Manufacturer Standard Lead Time	24 Weeks	Length	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Initial Permeability (µi)	2000
Inductance Factor (Al)	9.2µH	Height	24.50mm
Gap	Ungapped	Finish	Uncoated
Effective Permeability (µe)	1400	Effective Magnetic Volume (Ve) mm³	62000
Effective Length (le) mm	109	Effective Area (Ae) mm²	570
Diameter	62.00mm	Core Type	PM
Core Factor (ΣI/A) mm1	0.191
