B65513J0000R097

EPCOS

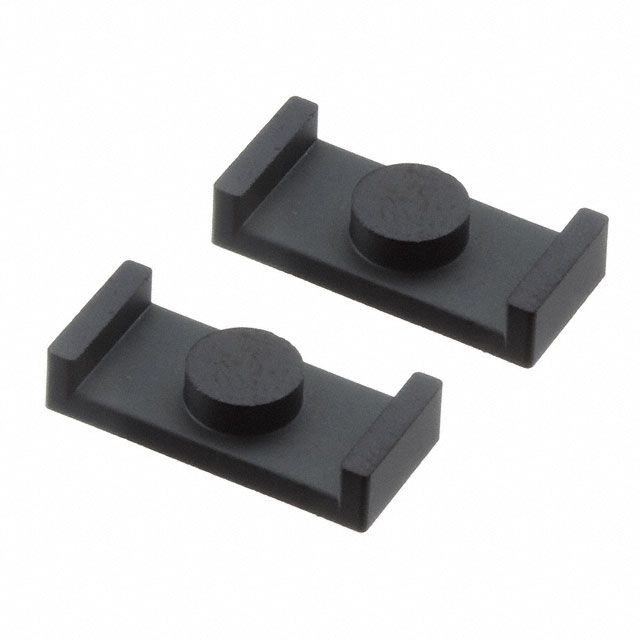

Image may be representation. See specifications for product details.

Product Overview

Part Number:	B65513J0000R097
Manufacturer/Brand:	EPCOS
Product description	FERRITE CORE ER 1.5UH N97 2PCS
Datasheets:	B65513J0000R097.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	73856 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 73856 pcs

Reference Price (In US Dollars)

1 pcs: $0.437

10 pcs: $0.393

25 pcs: $0.291

50 pcs: $0.277

100 pcs: $0.247

250 pcs: $0.233

920 pcs: $0.218

1840 pcs: $0.189

5520 pcs: $0.182

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.437

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of B65513J0000R097

Part Number	B65513J0000R097	Manufacturer	EPCOS
Description	FERRITE CORE ER 1.5UH N97 2PCS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	73856 pcs	Data sheet	B65513J0000R097.pdf
Width	6.70mm	Tolerance	-20%, +30%
Supplier Device Package	ER 14.5 x 6	Series	B65513
Other Names	495-75467 B65513J R 97 B65513JR97 B65513JR97-ND	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material	N97	Manufacturer Standard Lead Time	24 Weeks
Length	14.50mm	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Initial Permeability (µi)	2300	Inductance Factor (Al)	1.5µH
Height	2.95mm	Gap	Ungapped
Finish	Uncoated	Effective Permeability (µe)	1290
Effective Magnetic Volume (Ve) mm³	333	Effective Length (le) mm	19
Effective Area (Ae) mm²	17.6	Diameter	-
Core Type	ER	Core Factor (ΣI/A) mm1	1.1
