B64290L0022X830

EPCOS

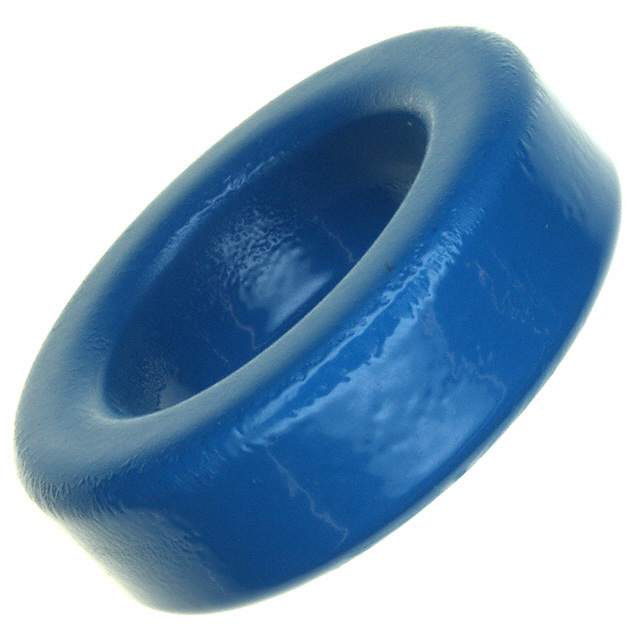

Image may be representation. See specifications for product details.

Product Overview

Part Number:	B64290L0022X830
Manufacturer/Brand:	EPCOS
Product description	FERRITE CORE TOROID 5UH N30
Datasheets:	1.B64290L0022X830.pdf 2.B64290L0022X830.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	17957 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 17957 pcs

Reference Price (In US Dollars)

1 pcs: $1.698

10 pcs: $1.447

25 pcs: $1.101

50 pcs: $1.07

100 pcs: $0.944

300 pcs: $0.881

500 pcs: $0.818

1000 pcs: $0.787

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.698

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of B64290L0022X830

Part Number	B64290L0022X830	Manufacturer	EPCOS
Description	FERRITE CORE TOROID 5UH N30	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	17957 pcs	Data sheet	1.B64290L0022X830.pdf 2.B64290L0022X830.pdf
Width	-	Tolerance	±25%
Supplier Device Package	-	Series	B64290
Other Names	495-3846 B64290L 22X830 B64290L 22X830 B64290L22X830	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material	N30	Manufacturer Standard Lead Time	24 Weeks
Length	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Initial Permeability (µi)	4300	Inductance Factor (Al)	5µH
Height	13.60mm	Gap	Ungapped
Finish	Epoxy	Effective Magnetic Volume (Ve) mm³	9862
Effective Length (le) mm	103	Effective Area (Ae) mm²	95.75
Diameter	43.60mm	Core Type	Toroid
Core Factor (ΣI/A) mm1	1.08
