EPCOS
| Part Number | B59990C120A54 | Manufacturer | EPCOS |
|---|---|---|---|

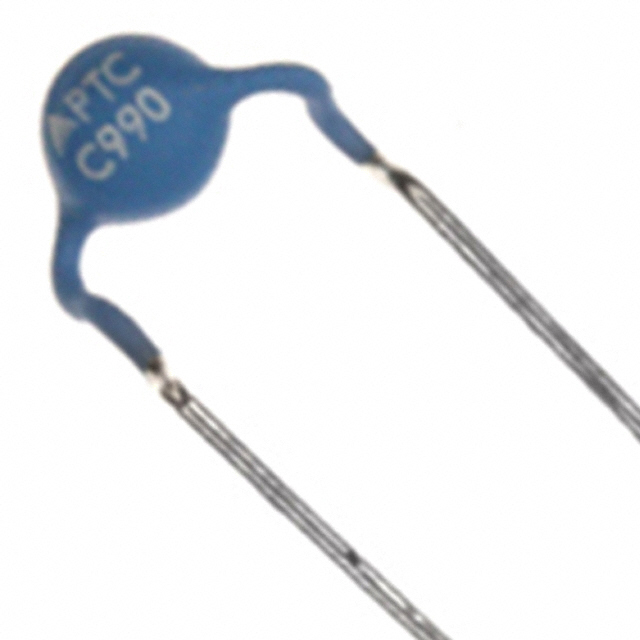

| Description | PTC RESET FUSE 80V 50MA RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 213879 pcs | Data sheet | 1.B59990C120A54.pdf2.B59990C120A54.pdf |
| Voltage - Max | 80V | Type | Ceramic |
| Thickness (Max) | - | Size / Dimension | 0.157" Dia x 0.138" T (4.00mm x 3.50mm) |
| Series | - | Resistance - 25°C (Typ) | 55 Ohms |
| Ratings | - | Packaging | Tape & Reel (TR) |
| Package / Case | Radial, Disc | Other Names | B59990C 120A 54 B59990C0120A054 B59990C0120A054-ND |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Spacing | 0.197" (5.00mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.295" (7.50mm) |
| Detailed Description | Ceramic PTC Resettable Fuse 80V 50mA Ih Through Hole Radial, Disc | Current - Trip (It) | 100mA |
| Current - Max | 700mA | Current - Hold (Ih) (Max) | 50mA |
| Approvals | UR |
