EPCOS
| Part Number | B59955C0160A070 | Manufacturer | EPCOS |
|---|---|---|---|

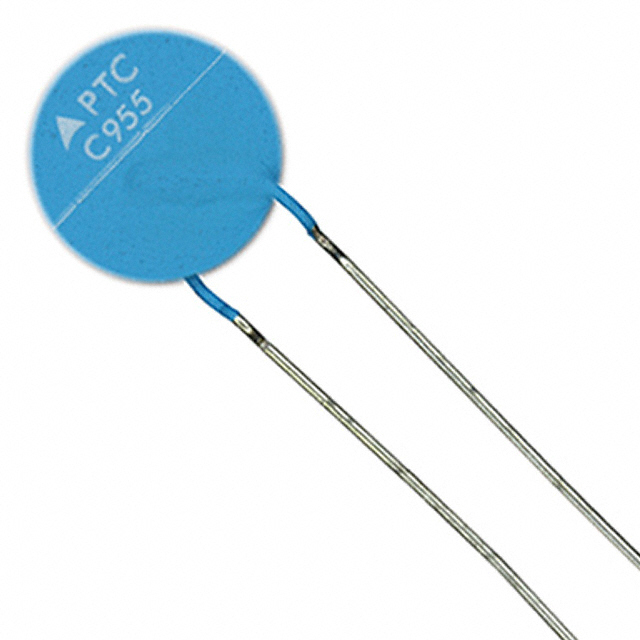

| Description | PTC RESET FUSE 20V 950MA RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 52703 pcs | Data sheet | B59955C0160A070.pdf |
| Voltage - Max | 20V | Type | Ceramic |
| Thickness (Max) | - | Size / Dimension | 0.532" Dia x 0.138" T (13.50mm x 3.50mm) |
| Series | - | Resistance - 25°C (Typ) | 800 mOhms |
| Ratings | AEC-Q200 | Packaging | Bulk |
| Package / Case | Radial, Disc | Other Names | 495-76399 B59955C 160A 70 B59955C0160A070-ND B59955C160A70 B59955C160A70-ND |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 18 Weeks |
| Lead Spacing | 0.197" (5.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.669" (17.00mm) | Detailed Description | Ceramic PTC Resettable Fuse 20V 950mA Ih Through Hole Radial, Disc |
| Current - Trip (It) | 1.9A | Current - Max | 5.5A |
| Current - Hold (Ih) (Max) | 950mA | Approvals | UR |
