EDAC Inc.
| Part Number | 572-003-420-101 | Manufacturer | EDAC Inc. |
|---|---|---|---|

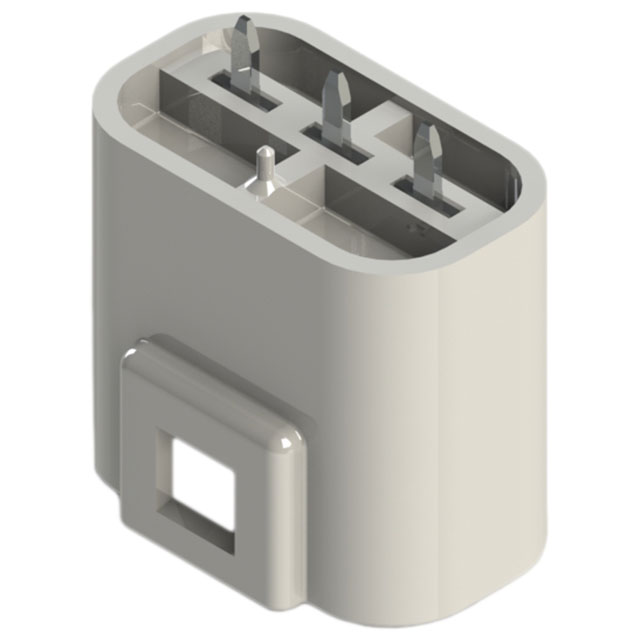

| Description | BOARD MTG 3 PIN PLUG (WHITE) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 42168 pcs | Data sheet | 572-003-420-101.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | 572 | Row Spacing - Mating | - |
| Pitch - Mating | 0.228" (5.80mm) | Packaging | Bulk |
| Overall Contact Length | - | Other Names | 151-1570 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 3 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Insulation Height | 0.768" (19.50mm) |
| Insulation Color | White | Ingress Protection | IP67 |
| Features | - | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Through Hole 3 position 0.228" (5.80mm) | Current Rating | 10A |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Brass | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | Automotive, General Purpose |
