EDAC Inc.

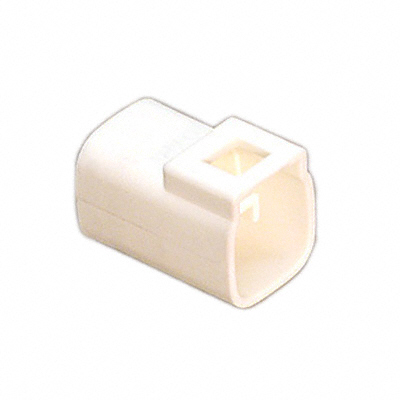

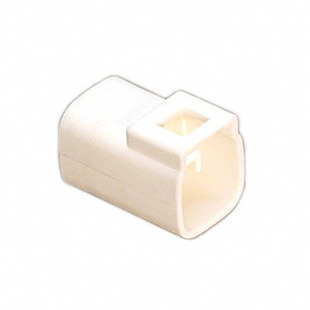

| Part Number | 570-001-420-101 | Manufacturer | EDAC Inc. |
|---|---|---|---|
| Description | CONN PLUG 1POS WATERPROOF PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 41459 pcs | Data sheet | 1.570-001-420-101.pdf2.570-001-420-101.pdf3.570-001-420-101.pdf4.570-001-420-101.pdf |
| Voltage Rating | 300V | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | 570 | Row Spacing - Mating | - |
| Pitch - Mating | - | Packaging | Bulk |
| Overall Contact Length | - | Other Names | 151-1016 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.768" (19.50mm) | Insulation Color | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Features | - |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole 1 position |
| Current Rating | 10A | Contact Type | Male Pin |
| Contact Shape | - | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - | Contact Finish - Mating | Tin |
| Connector Type | Plug | Applications | Automotive, General Purpose |
