346-100-520-802

EDAC Inc.

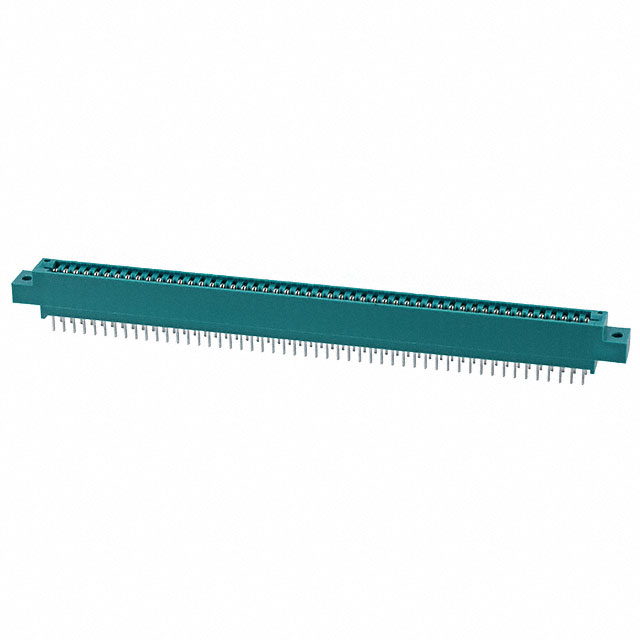

Image may be representation. See specifications for product details.

Product Overview

Part Number:	346-100-520-802
Manufacturer/Brand:	EDAC Inc.
Product description	CONN EDGE DUAL FMALE 100POS .125
Datasheets:	1.346-100-520-802.pdf 2.346-100-520-802.pdf 3.346-100-520-802.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5571 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5571 pcs

Reference Price (In US Dollars)

1 pcs: $6.022

10 pcs: $5.593

25 pcs: $5.02

50 pcs: $4.876

100 pcs: $4.302

250 pcs: $4.016

500 pcs: $3.929

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$6.022

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 346-100-520-802

Part Number	346-100-520-802	Manufacturer	EDAC Inc.
Description	CONN EDGE DUAL FMALE 100POS .125	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5571 pcs	Data sheet	1.346-100-520-802.pdf 2.346-100-520-802.pdf 3.346-100-520-802.pdf
Termination	Solder	Series	346
Read Out	Dual	Pitch	0.125" (3.18mm)
Packaging	Bulk	Other Names	151-1518 EDC346002 EDC346002-ND
Operating Temperature	-65°C ~ 125°C	Number of Rows	2
Number of Positions/Bay/Row	50	Number of Positions	100
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Insulation	Polyester Thermoplastic	Manufacturer Standard Lead Time	6 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Gender	Female
Flange Feature	Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia	Features	-
Contact Type	-	Contact Material	Copper, Nickel, Tin Alloy
Contact Finish Thickness	-	Contact Finish	Gold
Color	Green	Card Type	Non Specified - Dual Edge
Card Thickness	0.062" (1.57mm)
