306-010-520-102

EDAC Inc.

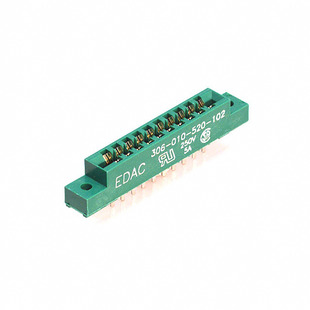

Image may be representation. See specifications for product details.

Product Overview

Part Number:	306-010-520-102
Manufacturer/Brand:	EDAC Inc.
Product description	CONN EDGE DUAL FMALE 20POS 0.156
Datasheets:	1.306-010-520-102.pdf 2.306-010-520-102.pdf 3.306-010-520-102.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	9053 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 9053 pcs

Reference Price (In US Dollars)

1 pcs: $3.49

10 pcs: $3.338

25 pcs: $3.034

50 pcs: $2.883

100 pcs: $2.807

250 pcs: $2.503

500 pcs: $2.352

1000 pcs: $2.079

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.49

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 306-010-520-102

Part Number	306-010-520-102	Manufacturer	EDAC Inc.
Description	CONN EDGE DUAL FMALE 20POS 0.156	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	9053 pcs	Data sheet	1.306-010-520-102.pdf 2.306-010-520-102.pdf 3.306-010-520-102.pdf
Termination	Solder	Series	306
Read Out	Single	Pitch	0.156" (3.96mm)
Packaging	Bulk	Other Names	151-1507 EDC306102 EDC306102-ND
Operating Temperature	-65°C ~ 125°C	Number of Rows	2
Number of Positions/Bay/Row	10	Number of Positions	20
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Insulation	Polyester Thermoplastic	Manufacturer Standard Lead Time	6 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Gender	Female
Flange Feature	Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia	Features	-
Contact Type	-	Contact Material	Copper, Nickel, Tin Alloy
Contact Finish Thickness	-	Contact Finish	Gold
Color	Green	Card Type	Non Specified - Dual Edge
Card Thickness	0.062" (1.57mm)
