ECS-96SMF21A15

ECS Inc. InternationalECS Inc. International

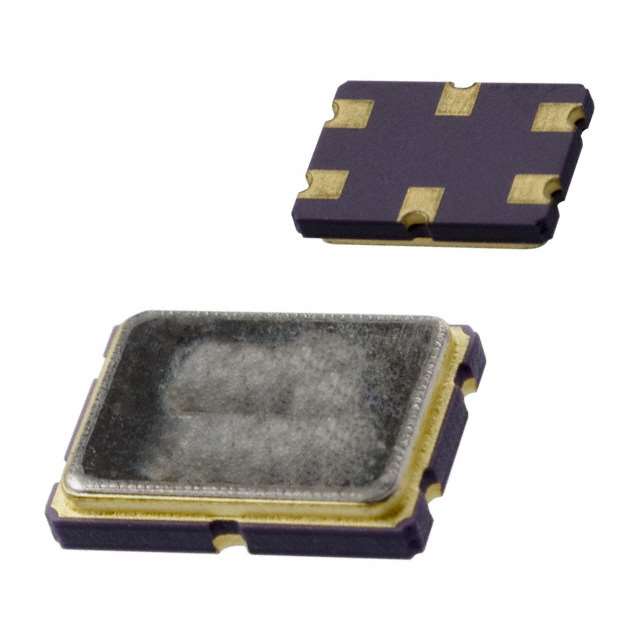

ECS-96SMF21A15 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: ECS-96SMF21A15
Manufacturer/Brand: ECS Inc. International
Product description MONO XTAL 21.4MHZ 2P 2DB SMD
Datasheets: ECS-96SMF21A15.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 32236 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 32236 pcs
Reference Price (In US Dollars)
1000 pcs
$1.138
3000 pcs
$1.081
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$1.138

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of ECS-96SMF21A15

Part Number ECS-96SMF21A15 Manufacturer ECS Inc. International
Description MONO XTAL 21.4MHZ 2P 2DB SMD Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 32236 pcs Data sheet ECS-96SMF21A15.pdf
Size / Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm) Series ECS-96SMF
Ripple 1dB Packaging Tape & Reel (TR)
Package / Case 6-SMD, No Lead Other Names 96SMF21A15
96SMF21A15-TR
ECS-96SMF21A15-TR
ECS96SMF21A15
X713TR
Operating Temperature -30°C ~ 80°C Number of Poles 2
Mounting Type Surface Mount Moisture Sensitivity Level (MSL) 1 (Unlimited)
Manufacturer Standard Lead Time 13 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Insertion Loss 2dB Impedance 1.5 kOhms
Height (Max) 0.059" (1.50mm) Frequency - Center 21.4MHz
Detailed Description 21.4MHz Center 1.5 kOhms Monolithic Crystal Filter Surface Mount 2dB 15kHz Bandwidth 15kHz
