TL3330AF260QG

E-SwitchE-Switch

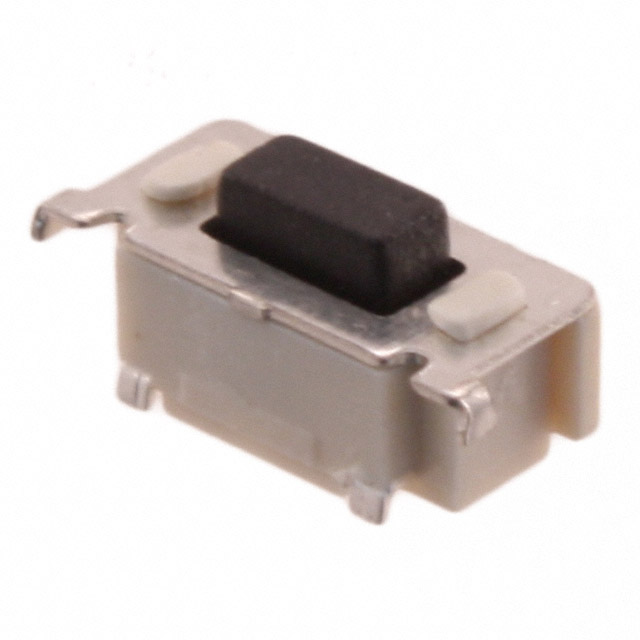

TL3330AF260QG Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: TL3330AF260QG
Manufacturer/Brand: E-Switch
Product description SWITCH TACTILE SPST-NO 0.05A 12V
Datasheets: 1.TL3330AF260QG.pdf2.TL3330AF260QG.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 385065 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
Download Product Details PDF
In Stock 385065 pcs
Reference Price (In US Dollars)
2300 pcs
$0.094
6900 pcs
$0.088
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.094

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of TL3330AF260QG

Part Number TL3330AF260QG Manufacturer E-Switch
Description SWITCH TACTILE SPST-NO 0.05A 12V Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 385065 pcs Data sheet 1.TL3330AF260QG.pdf2.TL3330AF260QG.pdf
Termination Style Gull Wing Switch Travel 0.25mm
Switch Function Off-Mom Series TL3330
Packaging Tape & Reel (TR) Outline 6.90mm x 3.40mm
Other Names EG4389TR Operating Temperature -30°C ~ 70°C
Operating Force 260gf Mounting Type Surface Mount, Right Angle
Moisture Sensitivity Level (MSL) 1 (Unlimited) Mechanical Life 30,000 Cycles
Manufacturer Standard Lead Time 11 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Ingress Protection - Illumination Voltage (Nominal) -
Illumination Type, Color - Illumination Non-Illuminated
Features - Detailed Description Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
Contact Rating @ Voltage 0.05A @ 12VDC Circuit SPST-NO
Actuator Type Rectangular Button Actuator Orientation Side Actuated
Actuator Material Polyamide (PA), Nylon Actuator Length, Right Angle 3.50mm
Actuator Height off PCB, Vertical -
