TL3302AF180QJ

E-Switch

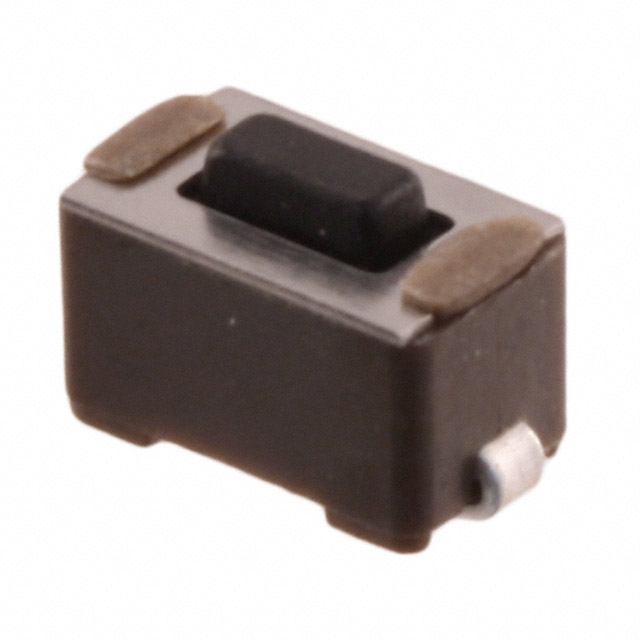

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TL3302AF180QJ
Manufacturer/Brand:	E-Switch
Product description	SWITCH TACTILE SPST-NO 0.05A 12V
Datasheets:	1.TL3302AF180QJ.pdf 2.TL3302AF180QJ.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	98615 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 98615 pcs

Reference Price (In US Dollars)

1 pcs: $0.318

10 pcs: $0.307

25 pcs: $0.29

50 pcs: $0.255

100 pcs: $0.232

250 pcs: $0.22

500 pcs: $0.215

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.318

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TL3302AF180QJ

Part Number	TL3302AF180QJ	Manufacturer	E-Switch
Description	SWITCH TACTILE SPST-NO 0.05A 12V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	98615 pcs	Data sheet	1.TL3302AF180QJ.pdf 2.TL3302AF180QJ.pdf
Termination Style	J Lead	Switch Travel	0.25mm
Switch Function	Off-Mom	Series	TL3302
Packaging	Original-Reel®	Outline	6.00mm x 3.50mm
Other Names	EG4576DKR	Operating Temperature	-20°C ~ 70°C
Operating Force	180gf	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	40,000 Cycles
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Tactile Feedback	Detailed Description	Tactile Switch SPST-NO Top Actuated Surface Mount
Contact Rating @ Voltage	0.05A @ 12VDC	Circuit	SPST-NO
Actuator Type	Rectangular Button	Actuator Orientation	Top Actuated
Actuator Material	Polyphenylene Sulfide (PPS)	Actuator Length, Right Angle	-
Actuator Height off PCB, Vertical	4.30mm
