E-Switch

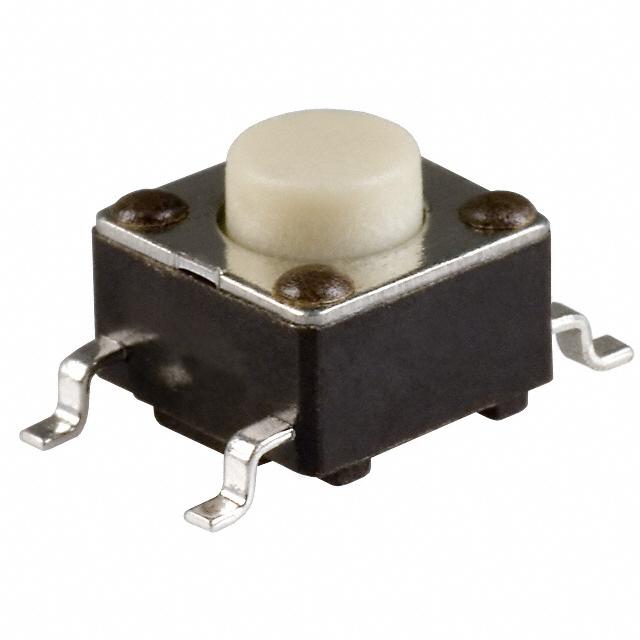

| Part Number | TL3301AF260QG | Manufacturer | E-Switch |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 397583 pcs | Data sheet | 1.TL3301AF260QG.pdf2.TL3301AF260QG.pdf |
| Termination Style | Gull Wing | Switch Travel | 0.25mm |
| Switch Function | Off-Mom | Series | TL3301 |
| Packaging | Tape & Reel (TR) | Outline | 6.00mm x 6.00mm |
| Other Names | EG2527TR P010513 TL3301AF260QG/TR |
Operating Temperature | -20°C ~ 70°C |
| Operating Force | 260gf | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 100,000 Cycles |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | - |
| Detailed Description | Tactile Switch SPST-NO Top Actuated Surface Mount | Contact Rating @ Voltage | 0.05A @ 12VDC |
| Circuit | SPST-NO | Actuator Type | Standard |
| Actuator Orientation | Top Actuated | Actuator Material | Polyamide (PA), Nylon |
| Actuator Length, Right Angle | - | Actuator Height off PCB, Vertical | 5.00mm |
