TL3200AF160GRQ

E-Switch

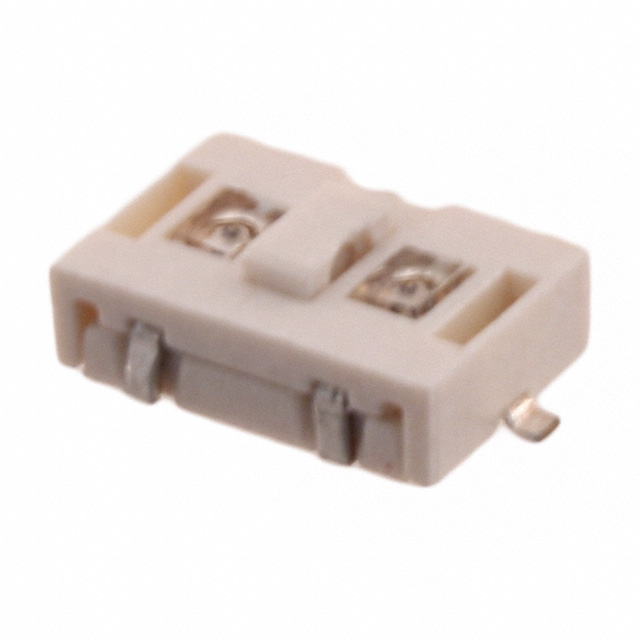

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TL3200AF160GRQ
Manufacturer/Brand:	E-Switch
Product description	SWITCH TACTILE SPST-NO 0.05A 12V
Datasheets:	1.TL3200AF160GRQ.pdf 2.TL3200AF160GRQ.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	26781 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 26781 pcs

Reference Price (In US Dollars)

1 pcs: $1.391

10 pcs: $1.326

25 pcs: $1.259

50 pcs: $1.226

100 pcs: $1.127

250 pcs: $1.06

500 pcs: $0.961

1000 pcs: $0.911

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.391

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TL3200AF160GRQ

Part Number	TL3200AF160GRQ	Manufacturer	E-Switch
Description	SWITCH TACTILE SPST-NO 0.05A 12V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	26781 pcs	Data sheet	1.TL3200AF160GRQ.pdf 2.TL3200AF160GRQ.pdf
Termination Style	Gull Wing	Switch Travel	0.25mm
Switch Function	Off-Mom	Series	TL3200
Packaging	Original-Reel®	Outline	6.80mm x 4.50mm
Other Names	EG4409DKR	Operating Temperature	-25°C ~ 85°C
Operating Force	160gf	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	2 (1 Year)	Mechanical Life	30,000 Cycles
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	2.3 VDC
Illumination Type, Color	LED, Green/Red	Illumination	Illuminated
Features	-	Detailed Description	Tactile Switch SPST-NO Top Actuated Surface Mount
Contact Rating @ Voltage	0.05A @ 12VDC	Circuit	SPST-NO
Actuator Type	Rectangular Button	Actuator Orientation	Top Actuated
Actuator Material	Liquid Crystal Polymer (LCP)	Actuator Length, Right Angle	-
Actuator Height off PCB, Vertical	2.50mm
