E-Switch

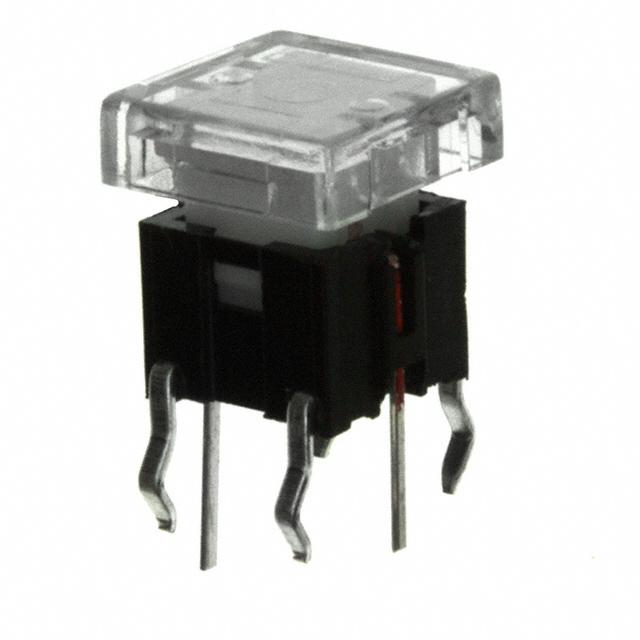

| Part Number | TL1240RQ1JCLR | Manufacturer | E-Switch |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 48756 pcs | Data sheet | 1.TL1240RQ1JCLR.pdf2.TL1240RQ1JCLR.pdf |
| Termination Style | PC Pin | Switch Travel | 0.25mm |
| Switch Function | Off-Mom | Series | TL1240 |
| Packaging | Bulk | Outline | 6.00mm x 6.00mm |
| Other Names | EG4615 TL1240R1JCLR TL1240R1JCLR-ND TL1240RQ1JCLR-ND |
Operating Temperature | -20°C ~ 70°C |
| Operating Force | 160gf | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 100,000 Cycles |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | 2.3 VDC |
| Illumination Type, Color | LED, Red | Illumination | Illuminated |
| Features | - | Detailed Description | Tactile Switch SPST-NO Top Actuated Through Hole |
| Contact Rating @ Voltage | 0.05A @ 12VDC | Circuit | SPST-NO |
| Actuator Type | Square Button | Actuator Orientation | Top Actuated |
| Actuator Material | Polybutylene Terephthalate (PBT) | Actuator Length, Right Angle | - |
| Actuator Height off PCB, Vertical | 8.20mm |
