TL1105JAF250Q

E-Switch

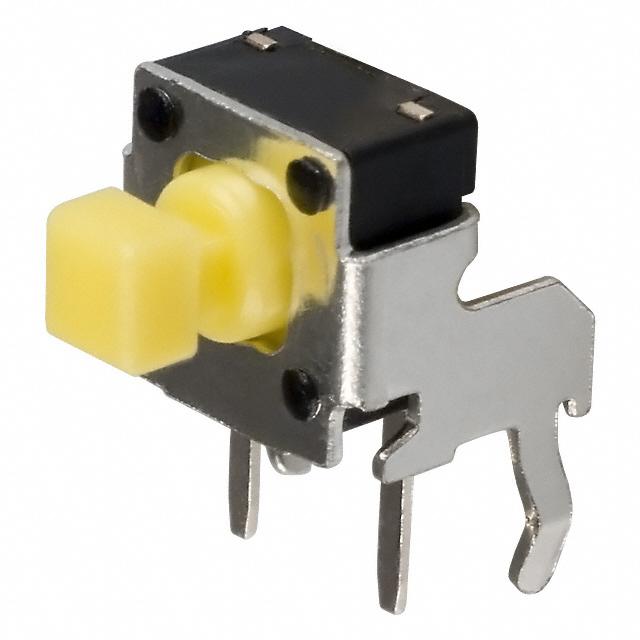

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TL1105JAF250Q
Manufacturer/Brand:	E-Switch
Product description	SWITCH TACTILE SPST-NO 0.05A 12V
Datasheets:	1.TL1105JAF250Q.pdf 2.TL1105JAF250Q.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	170070 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 170070 pcs

Reference Price (In US Dollars)

1 pcs: $0.191

10 pcs: $0.186

25 pcs: $0.183

50 pcs: $0.176

100 pcs: $0.152

250 pcs: $0.138

500 pcs: $0.131

1000 pcs: $0.103

5000 pcs: $0.097

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.191

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TL1105JAF250Q

Part Number	TL1105JAF250Q	Manufacturer	E-Switch
Description	SWITCH TACTILE SPST-NO 0.05A 12V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	170070 pcs	Data sheet	1.TL1105JAF250Q.pdf 2.TL1105JAF250Q.pdf
Termination Style	PC Pin	Switch Travel	0.25mm
Switch Function	Off-Mom	Series	TL1105
Packaging	Bulk	Outline	7.20mm x 7.00mm
Other Names	EG1864 P010217	Operating Temperature	-20°C ~ 70°C
Operating Force	250gf	Mounting Type	Through Hole, Right Angle
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	100,000 Cycles
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	-	Detailed Description	Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle
Contact Rating @ Voltage	0.05A @ 12VDC	Circuit	SPST-NO
Actuator Type	Plunger for Cap	Actuator Orientation	Side Actuated
Actuator Material	Polyamide (PA), Nylon	Actuator Length, Right Angle	6.35mm
Actuator Height off PCB, Vertical	-
