E-Switch

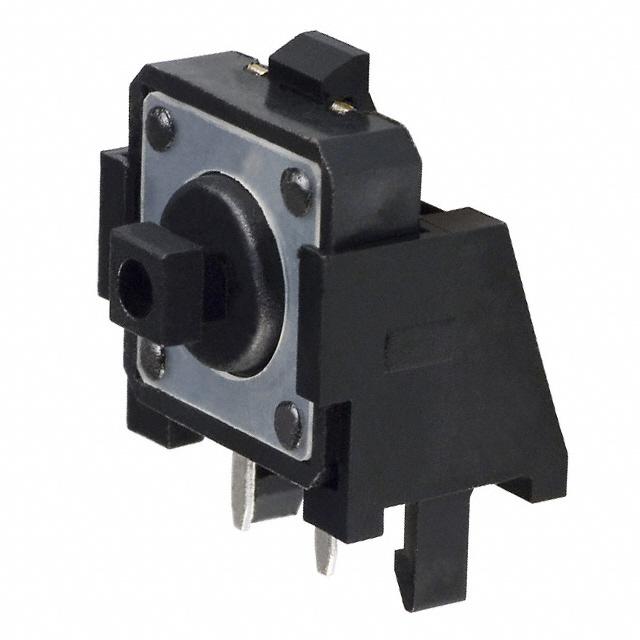

| Part Number | TL1100CF160Q | Manufacturer | E-Switch |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 161912 pcs | Data sheet | 1.TL1100CF160Q.pdf2.TL1100CF160Q.pdf |
| Termination Style | PC Pin | Switch Travel | 0.30mm |
| Switch Function | Off-Mom | Series | TL1100 |
| Packaging | Bulk | Outline | 12.00mm x 12.00mm |
| Other Names | D301110 EG1822 P001110 TL1100C |
Operating Temperature | -20°C ~ 70°C |
| Operating Force | 160gf | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 100,000 Cycles |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Illumination | Non-Illuminated |
| Features | Tactile Feedback | Detailed Description | Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle |
| Contact Rating @ Voltage | 0.05A @ 12VDC | Circuit | SPST-NO |
| Actuator Type | Plunger for Cap | Actuator Orientation | Side Actuated |
| Actuator Material | Polyester | Actuator Length, Right Angle | 6.45mm |
| Actuator Height off PCB, Vertical | - |
