TL1014AF160QG

E-Switch

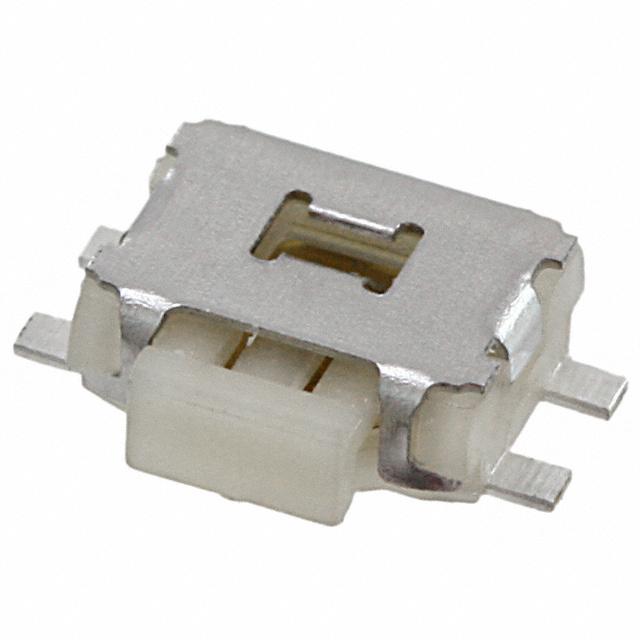

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TL1014AF160QG
Manufacturer/Brand:	E-Switch
Product description	SWITCH TACTILE SPST-NO 0.05A 12V
Datasheets:	TL1014AF160QG.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	114532 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 114532 pcs

Reference Price (In US Dollars)

1 pcs: $0.293

10 pcs: $0.283

25 pcs: $0.267

50 pcs: $0.235

100 pcs: $0.214

250 pcs: $0.203

500 pcs: $0.198

1000 pcs: $0.155

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.293

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TL1014AF160QG

Part Number	TL1014AF160QG	Manufacturer	E-Switch
Description	SWITCH TACTILE SPST-NO 0.05A 12V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	114532 pcs	Data sheet	TL1014AF160QG.pdf
Termination Style	Gull Wing	Switch Travel	0.30mm
Switch Function	Off-Mom	Series	TL1014
Packaging	Original-Reel®	Outline	4.70mm x 3.50mm
Other Names	EG5043DKR	Operating Temperature	-20°C ~ 70°C
Operating Force	160gf	Mounting Type	Surface Mount, Right Angle
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	100,000 Cycles
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	-	Detailed Description	Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
Contact Rating @ Voltage	0.05A @ 12VDC	Circuit	SPST-NO
Actuator Type	Rectangular Button	Actuator Orientation	Side Actuated
Actuator Material	Polyamide (PA46), Nylon 4/6	Actuator Length, Right Angle	-
Actuator Height off PCB, Vertical	-
