ST22GD00

E-Switch

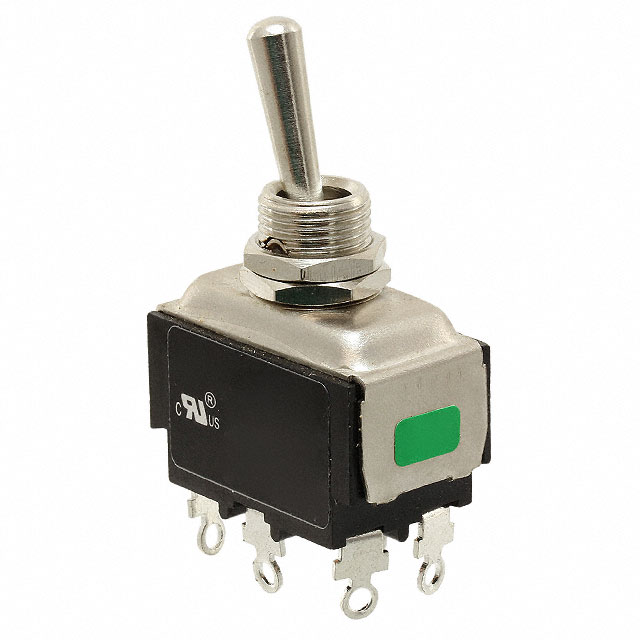

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ST22GD00
Manufacturer/Brand:	E-Switch
Product description	SWITCH TOGGLE DPDT 20A 125V
Datasheets:	ST22GD00.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	19345 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 19345 pcs

Reference Price (In US Dollars)

1000 pcs: $1.994

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.994

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ST22GD00

Part Number	ST22GD00	Manufacturer	E-Switch
Description	SWITCH TOGGLE DPDT 20A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	19345 pcs	Data sheet	ST22GD00.pdf
Voltage Rating - AC	125V	Termination Style	Solder Lug
Switch Function	On-On	Series	ST2, LAMB
Panel Cutout Dimensions	Circular - 12.00mm Dia	Packaging	Bulk
Operating Temperature	-20°C ~ 85°C	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	-
Electrical Life	6,000 Cycles	Detailed Description	Toggle Switch DPDT Panel Mount
Current Rating	20A (AC)	Circuit	DPDT
Bushing Thread	M12 x 1	Actuator Type	Standard Round
Actuator Material	Brass, Nickel Plated	Actuator Length	17.50mm
