ST16DD00

E-Switch

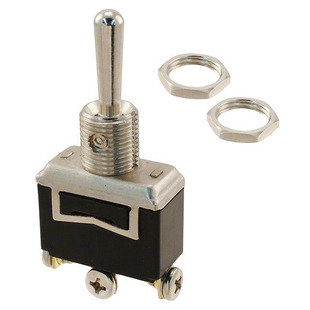

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ST16DD00
Manufacturer/Brand:	E-Switch
Product description	SWITCH TOGGLE SPDT 20A 125V
Datasheets:	1.ST16DD00.pdf 2.ST16DD00.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	15880 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 15880 pcs

Reference Price (In US Dollars)

1 pcs: $2.012

10 pcs: $1.912

25 pcs: $1.862

50 pcs: $1.812

100 pcs: $1.761

250 pcs: $1.661

500 pcs: $1.409

1000 pcs: $1.333

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.012

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ST16DD00

Part Number	ST16DD00	Manufacturer	E-Switch
Description	SWITCH TOGGLE SPDT 20A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15880 pcs	Data sheet	1.ST16DD00.pdf 2.ST16DD00.pdf
Voltage Rating - AC	125V	Termination Style	Screw Terminal
Switch Function	Mom-Off-Mom	Series	ST1, LAMB
Panel Cutout Dimensions	Circular - 12.00mm Dia	Packaging	Bulk
Other Names	EG4819	Operating Temperature	-20°C ~ 85°C
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	-	Electrical Life	6,000 Cycles
Detailed Description	Toggle Switch SPDT Panel Mount	Current Rating	20A (AC)
Circuit	SPDT	Bushing Thread	M12 x 1
Actuator Type	Standard Round	Actuator Material	Brass, Nickel Plated
Actuator Length	19.50mm
