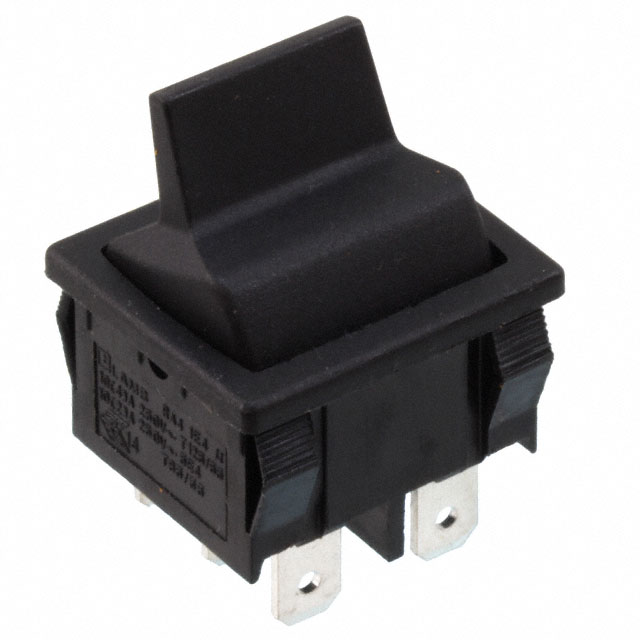

RA4P1GC1100

E-Switch

Image may be representation. See specifications for product details.

Product Overview

Part Number:	RA4P1GC1100
Manufacturer/Brand:	E-Switch
Product description	SWITCH ROCKER DPDT 16A 125V
Datasheets:	RA4P1GC1100.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	78668 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 78668 pcs

Reference Price (In US Dollars)

4000 pcs: $0.404

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.404

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of RA4P1GC1100

Part Number	RA4P1GC1100	Manufacturer	E-Switch
Description	SWITCH ROCKER DPDT 16A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	78668 pcs	Data sheet	RA4P1GC1100.pdf
Voltage Rating - AC	125V	Termination Style	Quick Connect - 0.187" (4.7mm)
Switch Function	On-On	Series	RA4, LAMB
Panel Cutout Dimensions	Rectangular - 22.00mm x 19.20mm	Packaging	Bulk
Operating Temperature	-20°C ~ 105°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	-
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	-
Electrical Life	10,000 Cycles	Detailed Description	Rocker Switch DPDT 16A (AC) 125V Panel Mount, Snap-In
Current Rating	16A (AC)	Color - Actuator/Cap	Black
Circuit	DPDT	Actuator Type	Paddle
Actuator Marking	No Marking
