R713FA1-SXXXNB4NNX

E-SwitchE-Switch

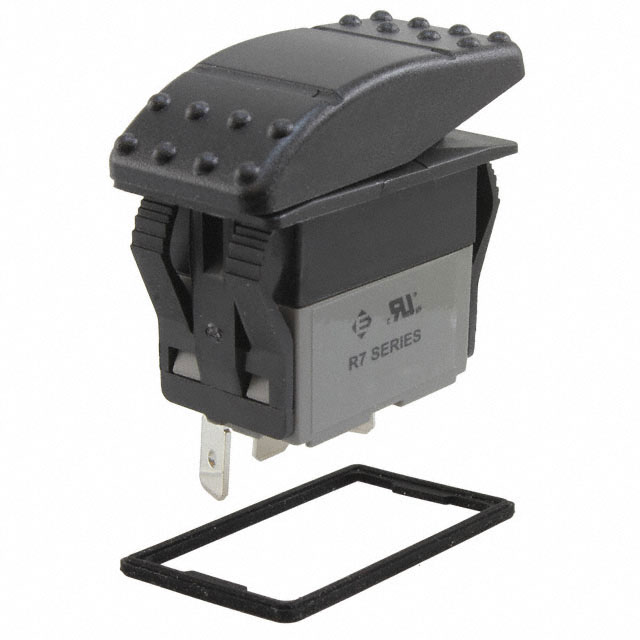

R713FA1-SXXXNB4NNX Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: R713FA1-SXXXNB4NNX
Manufacturer/Brand: E-Switch
Product description SWITCH ROCKER SPDT 16A 30V
Datasheets: 1.R713FA1-SXXXNB4NNX.pdf2.R713FA1-SXXXNB4NNX.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 12835 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
Download Product Details PDF
In Stock 12835 pcs
Reference Price (In US Dollars)
1 pcs
$2.496
10 pcs
$2.313
25 pcs
$2.191
50 pcs
$2.161
100 pcs
$2.13
250 pcs
$2.07
500 pcs
$1.887
1000 pcs
$1.704
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$2.496

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of R713FA1-SXXXNB4NNX

Part Number R713FA1-SXXXNB4NNX Manufacturer E-Switch
Description SWITCH ROCKER SPDT 16A 30V Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 12835 pcs Data sheet 1.R713FA1-SXXXNB4NNX.pdf2.R713FA1-SXXXNB4NNX.pdf
Voltage Rating - DC 30V Termination Style Quick Connect - 0.250" (6.3mm)
Switch Function On-Off-On Series R7
Panel Cutout Dimensions Rectangular - 37.00mm x 21.10mm Packaging Bulk
Other Names EG5106 Operating Temperature 0°C ~ 55°C
Mounting Type Panel Mount, Snap-In Moisture Sensitivity Level (MSL) 1 (Unlimited)
Mechanical Life - Manufacturer Standard Lead Time 11 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Ingress Protection IP67 - Dust Tight, Waterproof
Illumination Voltage (Nominal) - Illumination Type, Color -
Features - Electrical Life 10,000 Cycles
Detailed Description Rocker Switch SPDT 16A (DC) Panel Mount, Snap-In Current Rating 16A (DC)
Color - Actuator/Cap Black Circuit SPDT
Actuator Type Convex (Reverse V) Actuator Marking No Marking
