R5DBLKBLKBF0

E-Switch

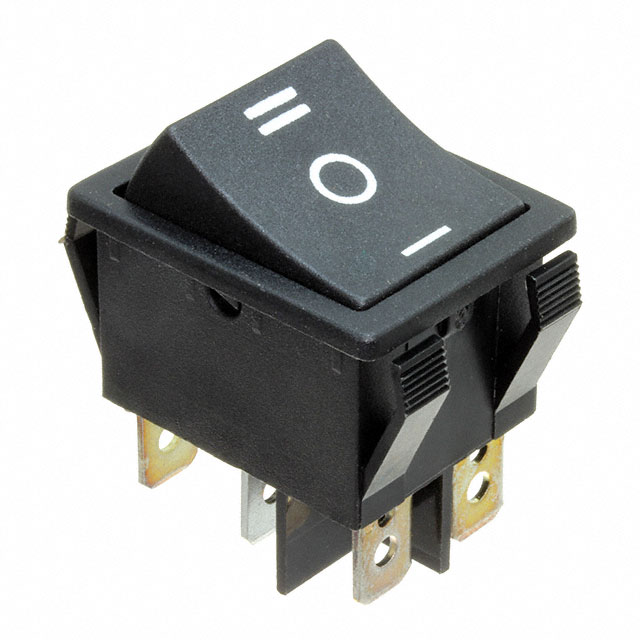

Image may be representation. See specifications for product details.

Product Overview

Part Number:	R5DBLKBLKBF0
Manufacturer/Brand:	E-Switch
Product description	ILLUMINATED ROCKER SWITCH 22MM X
Datasheets:	1.R5DBLKBLKBF0.pdf 2.R5DBLKBLKBF0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	40265 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 40265 pcs

Reference Price (In US Dollars)

1 pcs: $0.983

10 pcs: $0.958

25 pcs: $0.912

50 pcs: $0.867

100 pcs: $0.821

250 pcs: $0.798

500 pcs: $0.776

1000 pcs: $0.684

5000 pcs: $0.639

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.983

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of R5DBLKBLKBF0

Part Number	R5DBLKBLKBF0	Manufacturer	E-Switch
Description	ILLUMINATED ROCKER SWITCH 22MM X	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	40265 pcs	Data sheet	1.R5DBLKBLKBF0.pdf 2.R5DBLKBLKBF0.pdf
Voltage Rating - AC	125V	Termination Style	Quick Connect - 0.250" (6.3mm)
Switch Function	On-Off-On	Series	R5
Panel Cutout Dimensions	Rectangular - 30.00mm x 22.20mm	Packaging	Bulk
Other Names	EG5675	Operating Temperature	-20°C ~ 55°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	30,000 Cycles	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	-	Electrical Life	10,000 Cycles
Detailed Description	Rocker Switch DPDT 15A (AC) 125V Panel Mount, Snap-In	Current Rating	15A (AC)
Color - Actuator/Cap	Black	Circuit	DPDT
Actuator Type	Concave (Curved)	Actuator Marking	I O II
