R5BBLKREDEF2

E-Switch

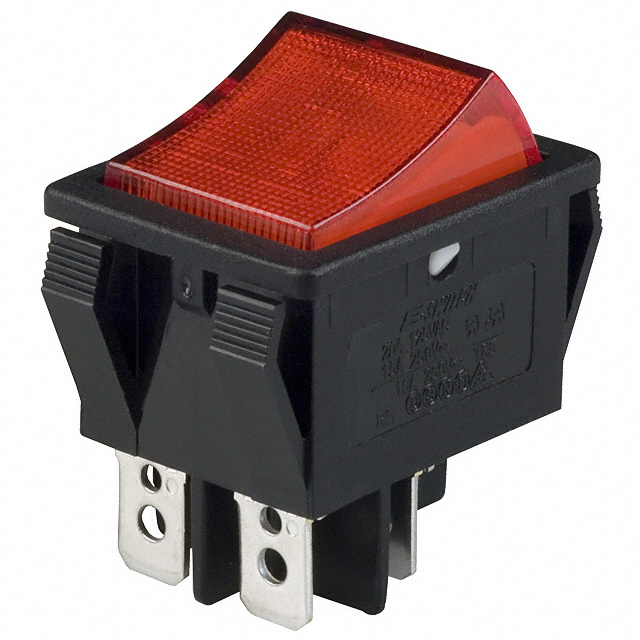

Image may be representation. See specifications for product details.

Product Overview

Part Number:	R5BBLKREDEF2
Manufacturer/Brand:	E-Switch
Product description	SWITCH ROCKER DPST 20A 125V
Datasheets:	1.R5BBLKREDEF2.pdf 2.R5BBLKREDEF2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	30370 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 30370 pcs

Reference Price (In US Dollars)

1 pcs: $0.983

10 pcs: $0.958

25 pcs: $0.912

50 pcs: $0.867

100 pcs: $0.821

250 pcs: $0.798

500 pcs: $0.776

1000 pcs: $0.684

5000 pcs: $0.639

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.983

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of R5BBLKREDEF2

Part Number	R5BBLKREDEF2	Manufacturer	E-Switch
Description	SWITCH ROCKER DPST 20A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	30370 pcs	Data sheet	1.R5BBLKREDEF2.pdf 2.R5BBLKREDEF2.pdf
Voltage Rating - AC	125V	Termination Style	Quick Connect - 0.250" (6.3mm)
Switch Function	On-Off	Series	R5
Panel Cutout Dimensions	Rectangular - 30.00mm x 22.20mm	Packaging	Bulk
Other Names	EG5604 R5BBLKREDEF2-ND	Operating Temperature	-20°C ~ 55°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	30,000 Cycles	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	250 VAC	Illumination Type, Color	Neon, Red
Features	-	Electrical Life	10,000 Cycles
Detailed Description	Rocker Switch DPST 20A (AC) 125V Panel Mount, Snap-In	Current Rating	20A (AC)
Color - Actuator/Cap	Red	Circuit	DPST
Actuator Type	Concave (Curved) - Illuminated	Actuator Marking	No Marking
