E-Switch

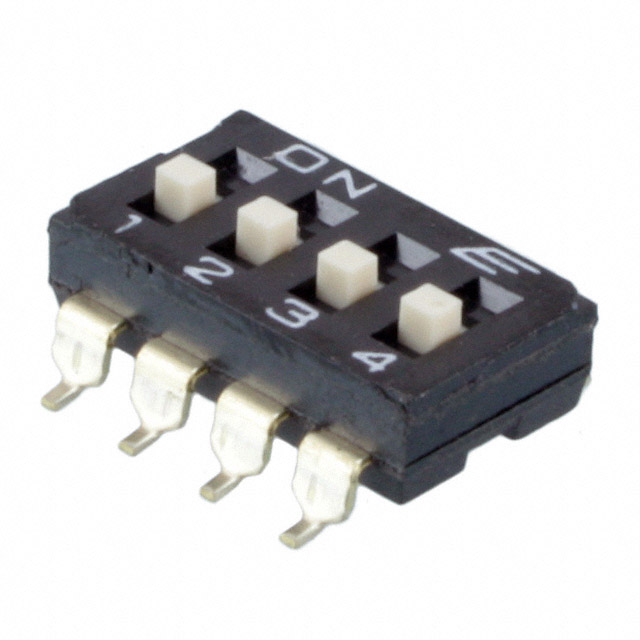

| Part Number | KAE04LGGR | Manufacturer | E-Switch |
|---|---|---|---|
| Description | SWITCH SLIDE DIP SPST 25MA 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 105956 pcs | Data sheet | 1.KAE04LGGR.pdf2.KAE04LGGR.pdf |
| Washable | No | Voltage Rating | 24VDC |
| Termination Style | Gull Wing | Series | KAE |
| Pitch | 0.100" (2.54mm), Full | Packaging | Tape & Reel (TR) |
| Other Names | EG5020-2 EG5020-2-ND EG5020TR |
Operating Temperature | -20°C ~ 85°C |
| Number of Positions | 4 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 2,000 Cycles |
| Manufacturer Standard Lead Time | 11 Weeks | Length | 0.441" (11.20mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Above Board | 0.175" (4.45mm) |
| Features | - | Electrical Life | 2,000 Cycles |
| Detailed Description | Dip Switch SPST 4 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC | Current Rating | 25mA |
| Contact Material | Copper | Contact Finish | Gold |
| Circuit | SPST | Body Material | - |
| Actuator Type | Slide (Standard) | Actuator Level | Raised |
