E-Switch
| Part Number | GSR8.54F130QP | Manufacturer | E-Switch |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 50V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5062 pcs | Data sheet | GSR8.54F130QP.pdf |
| Termination Style | PC Pin | Switch Travel | 0.30mm |
| Switch Function | Off-Mom | Series | GS |
| Packaging | Bulk | Outline | 8.00mm x 8.00mm |
| Other Names | EG2522 GS8.54F130QR GSR854F130QP L600000 |
Operating Temperature | -40°C ~ 85°C |
| Operating Force | 130gf | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 100,000 Cycles |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | - |

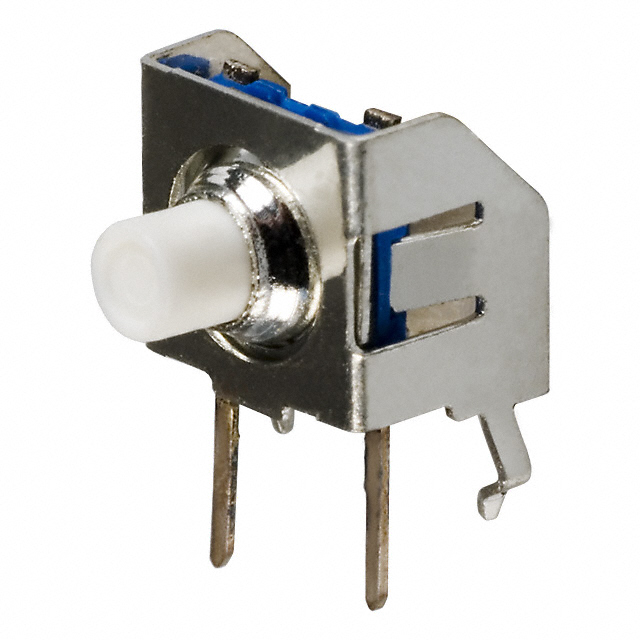

| Detailed Description | Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle | Contact Rating @ Voltage | 0.05A @ 50VDC |
| Circuit | SPST-NO | Actuator Type | Standard |
| Actuator Orientation | Side Actuated | Actuator Material | Liquid Crystal Polymer (LCP) |
| Actuator Length, Right Angle | 8.54mm | Actuator Height off PCB, Vertical | - |
