500SDP1S1M2REA

E-Switch

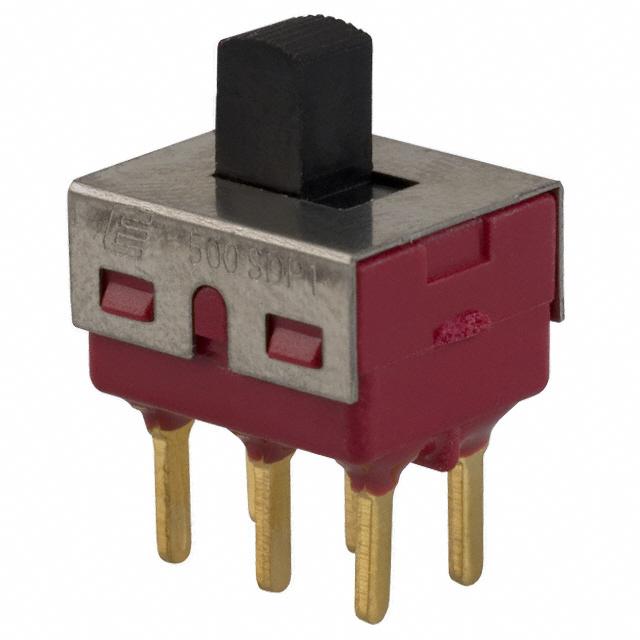

Image may be representation. See specifications for product details.

Product Overview

Part Number:	500SDP1S1M2REA
Manufacturer/Brand:	E-Switch
Product description	SWITCH SLIDE DPDT 0.4VA 20V
Datasheets:	1.500SDP1S1M2REA.pdf 2.500SDP1S1M2REA.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	23893 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 23893 pcs

Reference Price (In US Dollars)

1 pcs: $1.532

10 pcs: $1.50

25 pcs: $1.433

50 pcs: $1.266

100 pcs: $1.25

250 pcs: $1.233

500 pcs: $1.016

1000 pcs: $0.95

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.532

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 500SDP1S1M2REA

Part Number	500SDP1S1M2REA	Manufacturer	E-Switch
Description	SWITCH SLIDE DPDT 0.4VA 20V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	23893 pcs	Data sheet	1.500SDP1S1M2REA.pdf 2.500SDP1S1M2REA.pdf
Voltage Rating - DC	20V	Voltage Rating - AC	20V
Termination Style	PC Pin	Switch Travel	2.16mm
Switch Function	On-On	Series	500
Packaging	Bulk	Other Names	EG2474 T521003
Operating Temperature	-30°C ~ 85°C	Operating Force	-
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	30,000 Cycles	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Epoxy Sealed Terminals
Electrical Life	30,000 Cycles	Detailed Description	Slide Switch DPDT Through Hole
Current Rating	0.4VA (AC/DC)	Contact Timing	Not Specified
Contact Material	Copper Alloy	Contact Finish	Gold
Circuit	DPDT	Actuator Type	Standard
Actuator Material	Polyamide (PA), Nylon	Actuator Length	5.08mm
