E-Switch

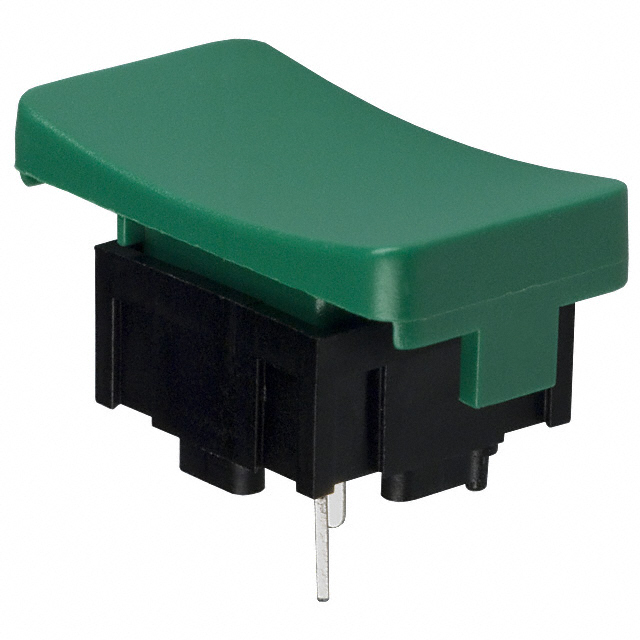

| Part Number | 320.21E11GRN | Manufacturer | E-Switch |
|---|---|---|---|
| Description | SWITCH TACT SPST-NO 0.025A 50V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 93010 pcs | Data sheet | 320.21E11GRN.pdf |
| Termination Style | PC Pin | Switch Travel | 0.60mm |
| Switch Function | Off-Mom | Series | 320 |
| Packaging | Bulk | Outline | 12.40mm x 12.40mm |
| Other Names | 320.21E1-1GRN EG2566 XB0778P |
Operating Temperature | -20°C ~ 70°C |
| Operating Force | 135gf | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 1,000,000 Cycles |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | Green Cap |
| Detailed Description | Tactile Switch SPST-NO Top Actuated Through Hole | Contact Rating @ Voltage | 0.025A @ 50VDC |
| Circuit | SPST-NO | Actuator Type | Rectangular Button |
| Actuator Orientation | Top Actuated | Actuator Material | Polycarbonate (PC) |
| Actuator Length, Right Angle | - | Actuator Height off PCB, Vertical | 12.00mm |
