200MDP1T1B1M1QEH

E-Switch

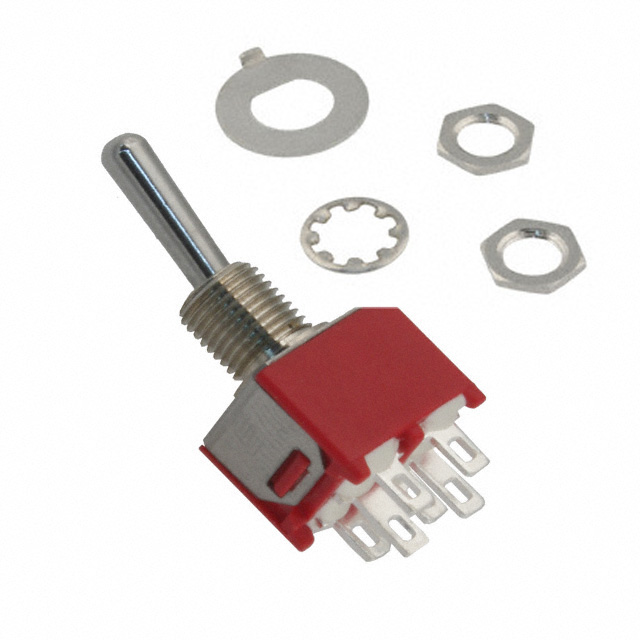

Image may be representation. See specifications for product details.

Product Overview

Part Number:	200MDP1T1B1M1QEH
Manufacturer/Brand:	E-Switch
Product description	SWITCH TOGGLE DPDT 3A 120V
Datasheets:	1.200MDP1T1B1M1QEH.pdf 2.200MDP1T1B1M1QEH.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	25758 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 25758 pcs

Reference Price (In US Dollars)

1 pcs: $1.30

10 pcs: $1.248

25 pcs: $1.194

50 pcs: $1.139

100 pcs: $1.031

250 pcs: $0.95

500 pcs: $0.868

1000 pcs: $0.76

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.30

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 200MDP1T1B1M1QEH

Part Number	200MDP1T1B1M1QEH	Manufacturer	E-Switch
Description	SWITCH TOGGLE DPDT 3A 120V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	25758 pcs	Data sheet	1.200MDP1T1B1M1QEH.pdf 2.200MDP1T1B1M1QEH.pdf
Voltage Rating - DC	28V	Voltage Rating - AC	120V
Termination Style	Solder Lug	Switch Function	On-On
Series	200	Panel Cutout Dimensions	Circular - 4.95mm Dia
Packaging	Bulk	Other Names	200MDP1T1B1M1QE EG2455 T221011
Operating Temperature	-30°C ~ 85°C	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Epoxy Sealed Terminals	Electrical Life	30,000 Cycles
Detailed Description	Toggle Switch DPDT Panel Mount	Current Rating	3A (AC/DC)
Circuit	DPDT	Bushing Thread	10-48
Actuator Type	Standard Round	Actuator Material	Brass, Chrome Plated
Actuator Length	9.40mm
