100DP1T6B15M2RE

E-Switch

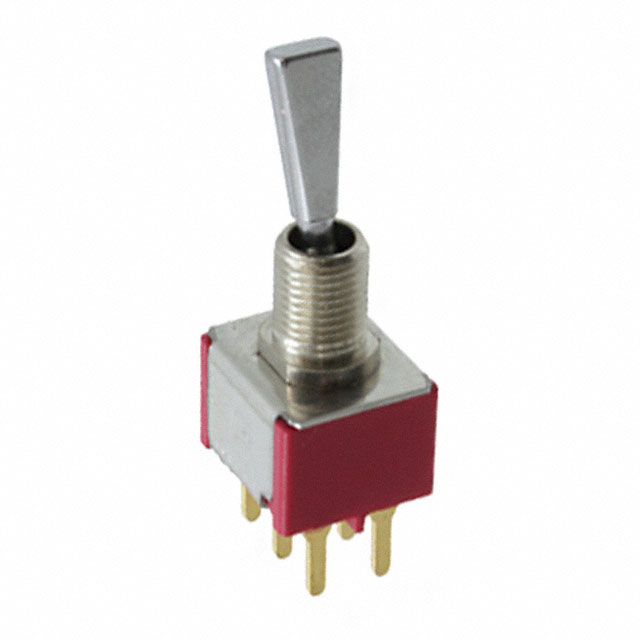

Image may be representation. See specifications for product details.

Product Overview

Part Number:	100DP1T6B15M2RE
Manufacturer/Brand:	E-Switch
Product description	SWITCH TOGGLE DPDT 0.4VA 20V
Datasheets:	1.100DP1T6B15M2RE.pdf 2.100DP1T6B15M2RE.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	27993 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 27993 pcs

Reference Price (In US Dollars)

1 pcs: $1.412

10 pcs: $1.354

25 pcs: $1.295

50 pcs: $1.237

100 pcs: $1.119

250 pcs: $1.03

500 pcs: $0.942

1000 pcs: $0.824

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.412

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 100DP1T6B15M2RE

Part Number	100DP1T6B15M2RE	Manufacturer	E-Switch
Description	SWITCH TOGGLE DPDT 0.4VA 20V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	27993 pcs	Data sheet	1.100DP1T6B15M2RE.pdf 2.100DP1T6B15M2RE.pdf
Voltage Rating - DC	20V	Voltage Rating - AC	20V
Termination Style	PC Pin	Switch Function	On-On
Series	100	Panel Cutout Dimensions	Circular - 6.35mm Dia
Packaging	Bulk	Operating Temperature	-30°C ~ 85°C
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Epoxy Sealed Terminals	Electrical Life	40,000 Cycles
Detailed Description	Toggle Switch DPDT Panel Mount	Current Rating	0.4VA (AC/DC)
Circuit	DPDT	Bushing Thread	1/4-40
Actuator Type	Flat Anti-Rotation	Actuator Material	Brass, Chrome Plated
Actuator Length	12.30mm
