1004P1T1B1M1QEH

E-Switch

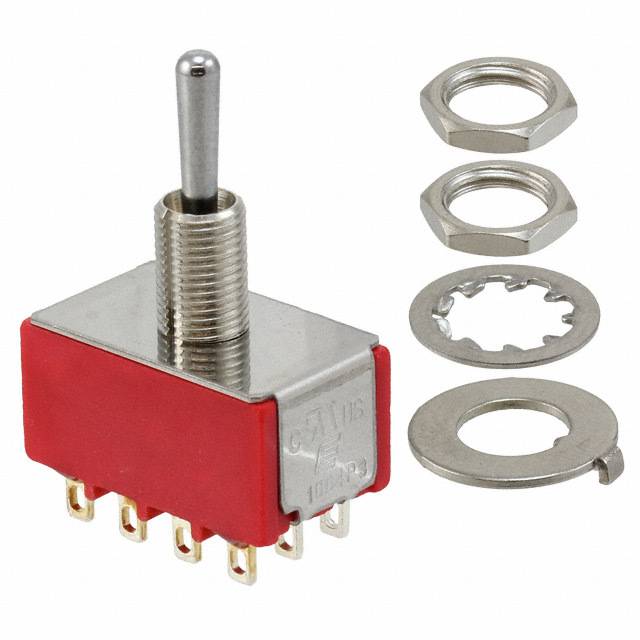

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1004P1T1B1M1QEH
Manufacturer/Brand:	E-Switch
Product description	SWITCH TOGGLE 4PDT 5A 120V
Datasheets:	1.1004P1T1B1M1QEH.pdf 2.1004P1T1B1M1QEH.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	11042 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 11042 pcs

Reference Price (In US Dollars)

1 pcs: $2.854

10 pcs: $2.71

25 pcs: $2.639

50 pcs: $2.568

100 pcs: $2.496

250 pcs: $2.354

500 pcs: $1.997

1000 pcs: $1.89

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.854

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1004P1T1B1M1QEH

Part Number	1004P1T1B1M1QEH	Manufacturer	E-Switch
Description	SWITCH TOGGLE 4PDT 5A 120V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	11042 pcs	Data sheet	1.1004P1T1B1M1QEH.pdf 2.1004P1T1B1M1QEH.pdf
Voltage Rating - DC	28V	Voltage Rating - AC	120V
Termination Style	Solder Lug	Switch Function	On-On
Series	100	Panel Cutout Dimensions	Circular - 6.35mm Dia
Packaging	Bulk	Other Names	1004P1T1B1M1QE EG2428 T141003
Operating Temperature	-30°C ~ 85°C	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Epoxy Sealed Terminals
Electrical Life	40,000 Cycles	Detailed Description	Toggle Switch 4PDT Panel Mount
Current Rating	5A (AC/DC)	Circuit	4PDT
Bushing Thread	1/4-40	Actuator Type	Standard Round
Actuator Material	Brass, Chrome Plated	Actuator Length	10.41mm
