ZXMN2F34MATA

Diodes Incorporated

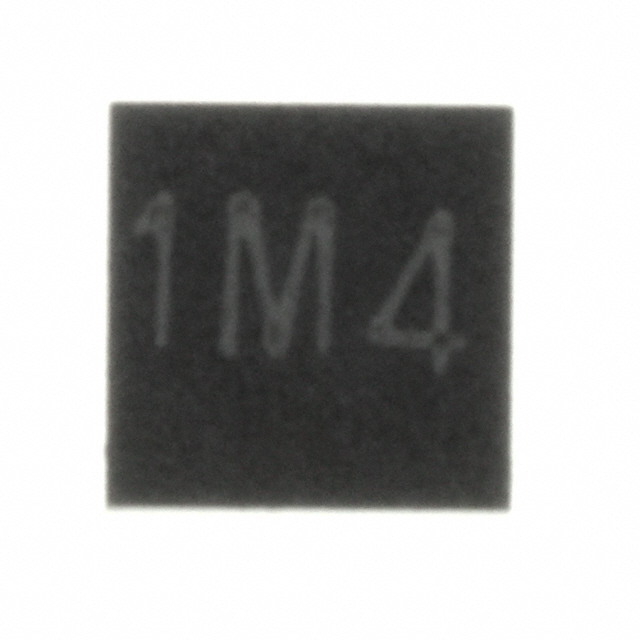

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ZXMN2F34MATA
Manufacturer/Brand:	Diodes Incorporated
Product description	MOSFET N-CH 20V 4A DFN-2X2
Datasheets:	ZXMN2F34MATA.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5992 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5992 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ZXMN2F34MATA

Part Number	ZXMN2F34MATA	Manufacturer	Diodes Incorporated
Description	MOSFET N-CH 20V 4A DFN-2X2	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5992 pcs	Data sheet	ZXMN2F34MATA.pdf
Vgs(th) (Max) @ Id	1.5V @ 250µA	Vgs (Max)	±12V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	DFN322
Series	-	Rds On (Max) @ Id, Vgs	60 mOhm @ 2.5A, 4.5V
Power Dissipation (Max)	1.35W (Ta)	Packaging	Tape & Reel (TR)
Package / Case	3-VDFN	Other Names	ZXMN2F34MATR
Operating Temperature	-55°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	277pF @ 10V	Gate Charge (Qg) (Max) @ Vgs	2.8nC @ 4.5V
FET Type	N-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V	Drain to Source Voltage (Vdss)	20V
Detailed Description	N-Channel 20V 4A (Ta) 1.35W (Ta) Surface Mount DFN322	Current - Continuous Drain (Id) @ 25°C	4A (Ta)
