TLV431AH6TA

Diodes Incorporated

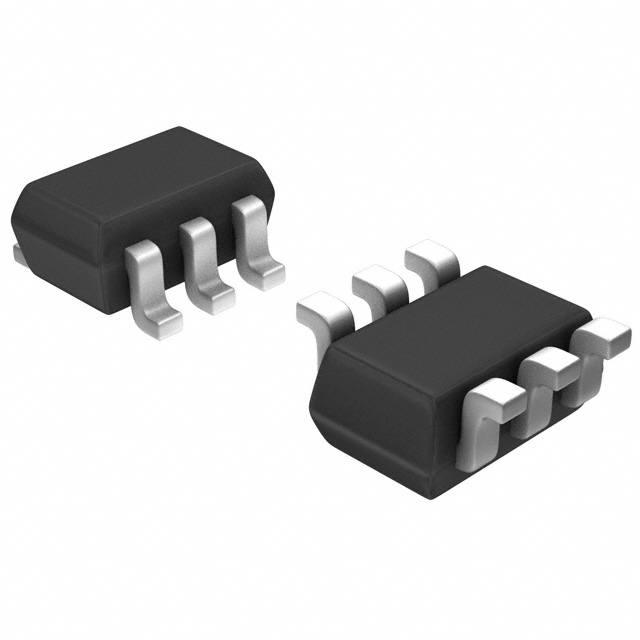

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TLV431AH6TA
Manufacturer/Brand:	Diodes Incorporated
Product description	IC VREF SHUNT ADJ SC70
Datasheets:	TLV431AH6TA.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	587902 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 587902 pcs

Reference Price (In US Dollars)

3000 pcs: $0.057

6000 pcs: $0.053

15000 pcs: $0.049

30000 pcs: $0.047

75000 pcs: $0.046

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.057

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TLV431AH6TA

Part Number	TLV431AH6TA	Manufacturer	Diodes Incorporated
Description	IC VREF SHUNT ADJ SC70	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	587902 pcs	Data sheet	TLV431AH6TA.pdf
Voltage - Output (Min/Fixed)	1.24V	Voltage - Output (Max)	18V
Voltage - Input	-	Tolerance	±1%
Temperature Coefficient	-	Supplier Device Package	SC-70-6
Series	-	Reference Type	Shunt
Packaging	Tape & Reel (TR)	Package / Case	6-TSSOP, SC-88, SOT-363
Output Type	Adjustable	Other Names	TLV431AH6TA-ND TLV431AH6TADITR
Operating Temperature	-40°C ~ 125°C (TA)	Noise - 10Hz to 10kHz	-
Noise - 0.1Hz to 10Hz	-	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	26 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Detailed Description	Shunt Voltage Reference IC 18V ±1% 15mA SC-70-6
Current - Supply	-	Current - Output	15mA
Current - Cathode	100µA	Base Part Number	TLV431
