SHA000001

Diodes Incorporated

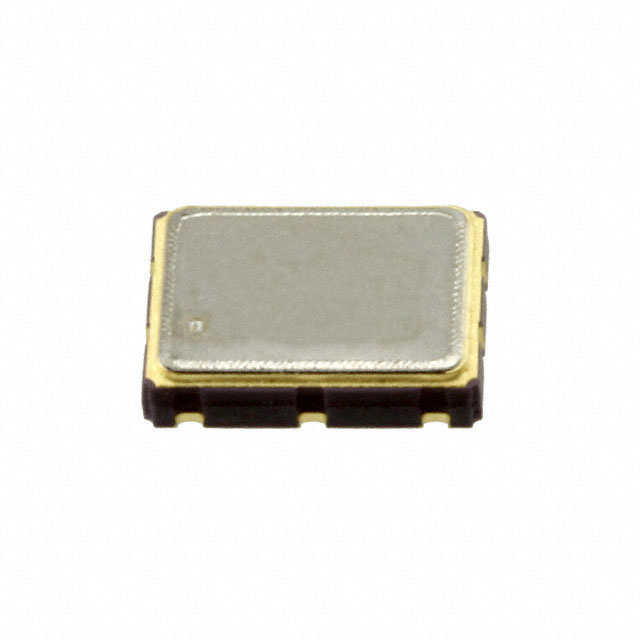

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SHA000001
Manufacturer/Brand:	Diodes Incorporated
Product description	OSCILLATOR XO 100MHZ HCSL SMD
Datasheets:	SHA000001.pdf
RoHs Status	Contains lead / RoHS Compliant
Stock Condition	19634 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 19634 pcs

Reference Price (In US Dollars)

1 pcs: $1.969

10 pcs: $1.858

50 pcs: $1.803

100 pcs: $1.721

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.969

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SHA000001

Part Number	SHA000001	Manufacturer	Diodes Incorporated
Description	OSCILLATOR XO 100MHZ HCSL SMD	Lead Free Status / RoHS Status	Contains lead / RoHS Compliant
Quantity Available	19634 pcs	Data sheet	SHA000001.pdf
Voltage - Supply	3.3V	Type	XO (Standard)
Size / Dimension	0.276" L x 0.197" W (7.00mm x 5.00mm)	Series	SaRonix-eCera™ SH
Ratings	-	Packaging	Original-Reel®
Package / Case	6-SMD, No Lead	Output	HCSL
Other Names	SHA000001DKR	Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Contains lead / RoHS Compliant
Height - Seated (Max)	0.079" (2.00mm)	Function	Enable/Disable
Frequency Stability	±50ppm	Frequency	100MHz
Detailed Description	100MHz XO (Standard) HCSL Oscillator 3.3V Enable/Disable 6-SMD, No Lead	Current - Supply (Max)	40mA
Current - Supply (Disable) (Max)	15mA	Base Resonator	Crystal
