SBR05U40CSP-7

Diodes IncorporatedDiodes Incorporated

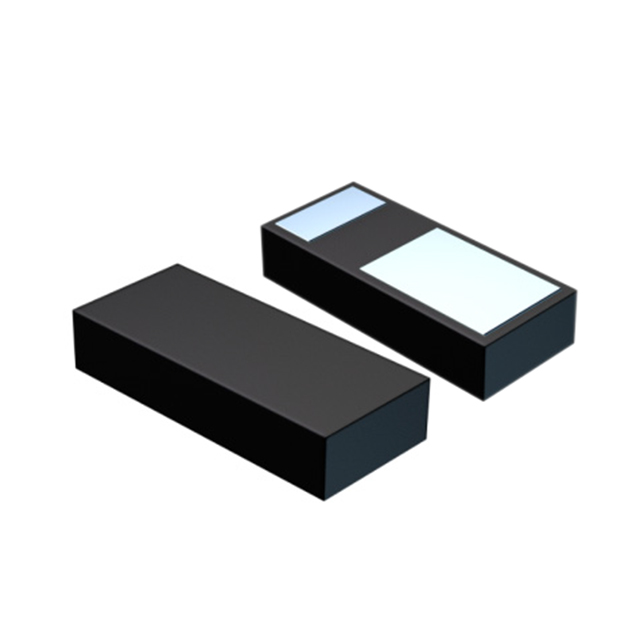

SBR05U40CSP-7 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: SBR05U40CSP-7
Manufacturer/Brand: Diodes Incorporated
Product description DIODE SBR 40V 500MA WLB1006
Datasheets: SBR05U40CSP-7.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 5014 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 5014 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of SBR05U40CSP-7

Part Number SBR05U40CSP-7 Manufacturer Diodes Incorporated
Description DIODE SBR 40V 500MA WLB1006 Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 5014 pcs Data sheet SBR05U40CSP-7.pdf
Voltage - Forward (Vf) (Max) @ If 460mV @ 500mA Voltage - DC Reverse (Vr) (Max) 40V
Supplier Device Package X2-WLB1006-2 Speed Standard Recovery >500ns, > 200mA (Io)
Series SBR® Packaging Cut Tape (CT)
Package / Case 2-XDFN Other Names SBR05U40CSP-7DICT
Operating Temperature - Junction -55°C ~ 150°C Mounting Type Surface Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited) Lead Free Status / RoHS Status Lead free / RoHS Compliant
Diode Type Super Barrier Detailed Description Diode Super Barrier 40V 500mA Surface Mount X2-WLB1006-2
Current - Reverse Leakage @ Vr 75µA @ 40V Current - Average Rectified (Io) 500mA
Capacitance @ Vr, F 34pF @ 4V, 1MHz Base Part Number SBR05U40
