PI5A3158BZAEX

Diodes Incorporated

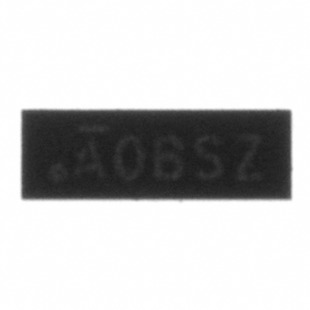

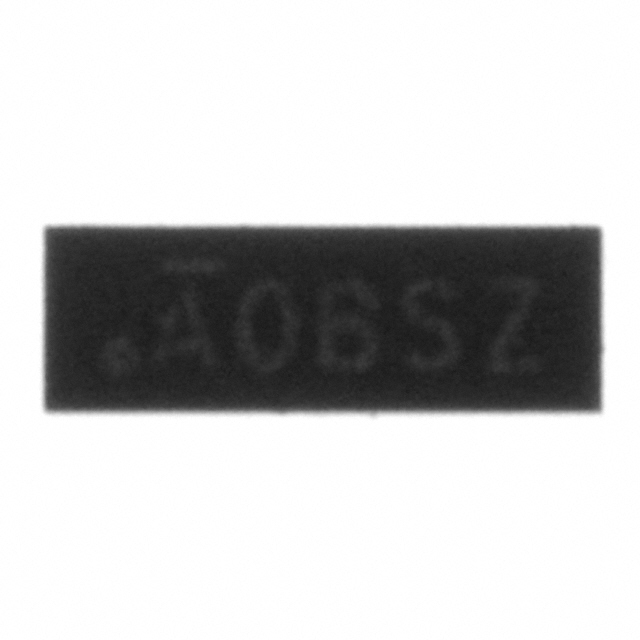

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PI5A3158BZAEX
Manufacturer/Brand:	Diodes Incorporated
Product description	IC SWITCH DUAL SPDT 12TDFN
Datasheets:	PI5A3158BZAEX.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	552155 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 552155 pcs

Reference Price (In US Dollars)

3500 pcs: $0.056

7000 pcs: $0.052

10500 pcs: $0.049

24500 pcs: $0.046

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.056

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PI5A3158BZAEX

Part Number	PI5A3158BZAEX	Manufacturer	Diodes Incorporated
Description	IC SWITCH DUAL SPDT 12TDFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	552155 pcs	Data sheet	PI5A3158BZAEX.pdf
Voltage - Supply, Single (V+)	1.65 V ~ 5.5 V	Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	-	Switch Circuit	SPDT
Supplier Device Package	12-TDFN (3x1)	Series	-
Packaging	Tape & Reel (TR)	Package / Case	12-WFDFN
Other Names	PI5A3158BZAEX-ND PI5A3158BZAEXDITR	Operating Temperature	-40°C ~ 85°C (TA)
On-State Resistance (Max)	11 Ohm	Number of Circuits	2
Multiplexer/Demultiplexer Circuit	2:1	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	6 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	2 Circuit IC Switch 2:1 11 Ohm 12-TDFN (3x1)	Current - Leakage (IS(off)) (Max)	100nA
Crosstalk	-	Charge Injection	5pC
Channel-to-Channel Matching (ΔRon)	150 mOhm	Channel Capacitance (CS(off), CD(off))	2.5pF
-3db Bandwidth	350MHz
