DMT3002LPS-13

Diodes Incorporated

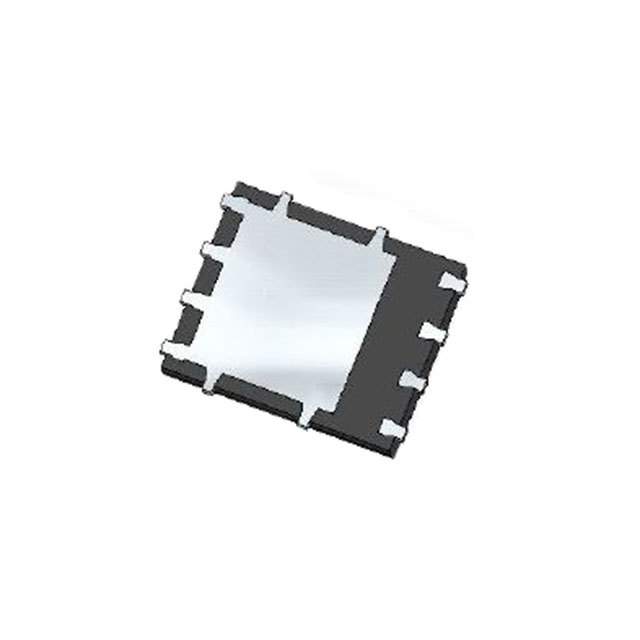

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DMT3002LPS-13
Manufacturer/Brand:	Diodes Incorporated
Product description	MOSFET NCH 30V 100A POWERDI
Datasheets:	DMT3002LPS-13.pdf
RoHs Status	Contains lead / RoHS Compliant
Stock Condition	153708 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 153708 pcs

Reference Price (In US Dollars)

2500 pcs: $0.227

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.227

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DMT3002LPS-13

Part Number	DMT3002LPS-13	Manufacturer	Diodes Incorporated
Description	MOSFET NCH 30V 100A POWERDI	Lead Free Status / RoHS Status	Contains lead / RoHS Compliant
Quantity Available	153708 pcs	Data sheet	DMT3002LPS-13.pdf
Vgs(th) (Max) @ Id	2V @ 1mA	Vgs (Max)	±16V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	PowerDI5060-8
Series	Automotive, AEC-Q101	Rds On (Max) @ Id, Vgs	1.6 mOhm @ 25A, 10V
Power Dissipation (Max)	1.2W (Ta), 136W (Tc)	Packaging	Tape & Reel (TR)
Package / Case	8-PowerTDFN	Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	20 Weeks	Lead Free Status / RoHS Status	Contains lead / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	5000pF @ 15V	Gate Charge (Qg) (Max) @ Vgs	77nC @ 10V
FET Type	N-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V	Drain to Source Voltage (Vdss)	30V
Detailed Description	N-Channel 30V 100A (Tc) 1.2W (Ta), 136W (Tc) Surface Mount PowerDI5060-8	Current - Continuous Drain (Id) @ 25°C	100A (Tc)
