DMP1245UFCL-7

Diodes Incorporated

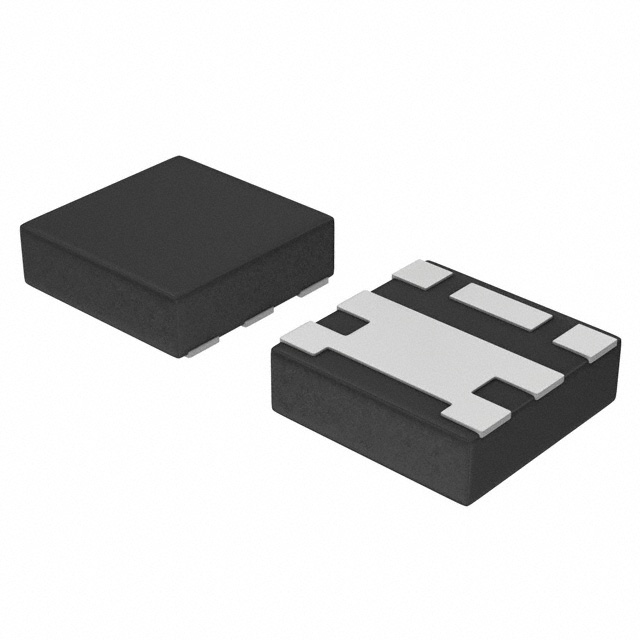

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DMP1245UFCL-7
Manufacturer/Brand:	Diodes Incorporated
Product description	MOSFET P-CH 12V 6.6A 6-UFDFN
Datasheets:	DMP1245UFCL-7.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	355663 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 355663 pcs

Reference Price (In US Dollars)

3000 pcs: $0.09

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.09

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DMP1245UFCL-7

Part Number	DMP1245UFCL-7	Manufacturer	Diodes Incorporated
Description	MOSFET P-CH 12V 6.6A 6-UFDFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	355663 pcs	Data sheet	DMP1245UFCL-7.pdf
Vgs(th) (Max) @ Id	950mV @ 250µA	Vgs (Max)	±8V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	X1-DFN1616-6 (Type E)
Series	-	Rds On (Max) @ Id, Vgs	29 mOhm @ 4A, 4.5V
Power Dissipation (Max)	613mW (Ta)	Packaging	Tape & Reel (TR)
Package / Case	6-PowerUFDFN	Other Names	DMP1245UFCL-7DITR DMP1245UFCL7
Operating Temperature	-55°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	26 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Ciss) (Max) @ Vds	1357.4pF @ 10V
Gate Charge (Qg) (Max) @ Vgs	26.1nC @ 8V	FET Type	P-Channel
FET Feature	-	Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Drain to Source Voltage (Vdss)	12V	Detailed Description	P-Channel 12V 6.6A (Ta) 613mW (Ta) Surface Mount X1-DFN1616-6 (Type E)
Current - Continuous Drain (Id) @ 25°C	6.6A (Ta)
