DMN1250UFEL-7

Diodes Incorporated

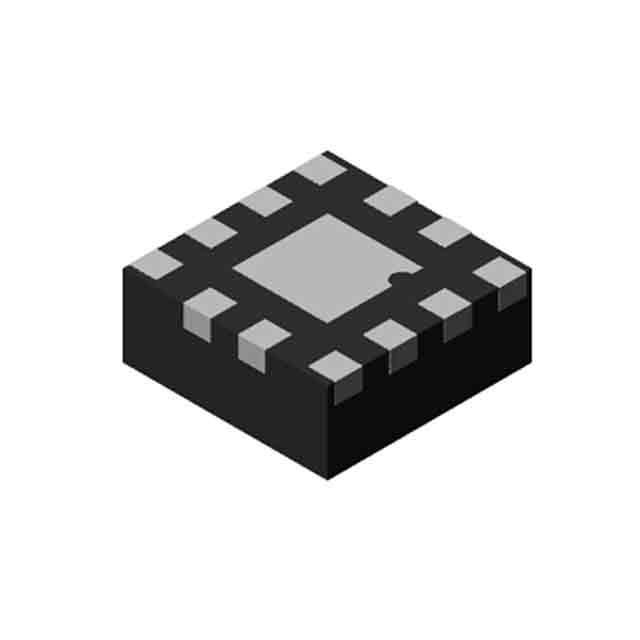

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DMN1250UFEL-7
Manufacturer/Brand:	Diodes Incorporated
Product description	MOSFET BVDSS: 8V 24V U-QFN1515-1
Datasheets:	DMN1250UFEL-7.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	83683 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 83683 pcs

Reference Price (In US Dollars)

1 pcs: $0.412

10 pcs: $0.359

100 pcs: $0.277

500 pcs: $0.205

1000 pcs: $0.164

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.412

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DMN1250UFEL-7

Part Number	DMN1250UFEL-7	Manufacturer	Diodes Incorporated
Description	MOSFET BVDSS: 8V 24V U-QFN1515-1	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	83683 pcs	Data sheet	DMN1250UFEL-7.pdf
Vgs(th) (Max) @ Id	1V @ 250µA	Supplier Device Package	U-QFN1515-12
Series	-	Rds On (Max) @ Id, Vgs	450 mOhm @ 200mA, 4.5V
Power - Max	660mW	Packaging	Cut Tape (CT)
Package / Case	12-UFQFN Exposed Pad	Other Names	DMN1250UFEL-7DICT
Operating Temperature	-55°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Ciss) (Max) @ Vds	190pF @ 6V
Gate Charge (Qg) (Max) @ Vgs	1.9nC @ 4.5V	FET Type	8 N-Channel, Common Gate, Common Source
FET Feature	Standard	Drain to Source Voltage (Vdss)	12V
Detailed Description	Mosfet Array 8 N-Channel, Common Gate, Common Source 12V 2A 660mW Surface Mount U-QFN1515-12	Current - Continuous Drain (Id) @ 25°C	2A
