DMG5802LFX-7

Diodes Incorporated

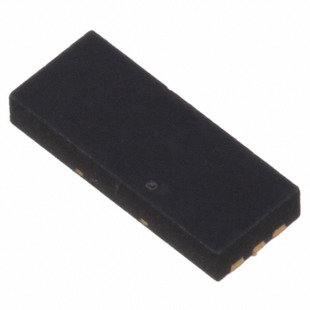

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DMG5802LFX-7
Manufacturer/Brand:	Diodes Incorporated
Product description	MOSFET 2N-CH 24V 6.5A 6DFN
Datasheets:	DMG5802LFX-7.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	307852 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 307852 pcs

Reference Price (In US Dollars)

3000 pcs: $0.096

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.096

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DMG5802LFX-7

Part Number	DMG5802LFX-7	Manufacturer	Diodes Incorporated
Description	MOSFET 2N-CH 24V 6.5A 6DFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	307852 pcs	Data sheet	DMG5802LFX-7.pdf
Vgs(th) (Max) @ Id	1.5V @ 250µA	Supplier Device Package	W-DFN5020-6
Series	-	Rds On (Max) @ Id, Vgs	15 mOhm @ 6.5A, 4.5V
Power - Max	980mW	Packaging	Tape & Reel (TR)
Package / Case	6-VFDFN Exposed Pad	Other Names	DMG5802LFX-7DITR DMG5802LFX7
Operating Temperature	-55°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	20 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Ciss) (Max) @ Vds	1066.4pF @ 15V
Gate Charge (Qg) (Max) @ Vgs	31.3nC @ 10V	FET Type	2 N-Channel (Dual) Common Drain
FET Feature	Logic Level Gate	Drain to Source Voltage (Vdss)	24V
Detailed Description	Mosfet Array 2 N-Channel (Dual) Common Drain 24V 6.5A 980mW Surface Mount W-DFN5020-6	Current - Continuous Drain (Id) @ 25°C	6.5A
