DGTD65T15H2TF

Diodes Incorporated

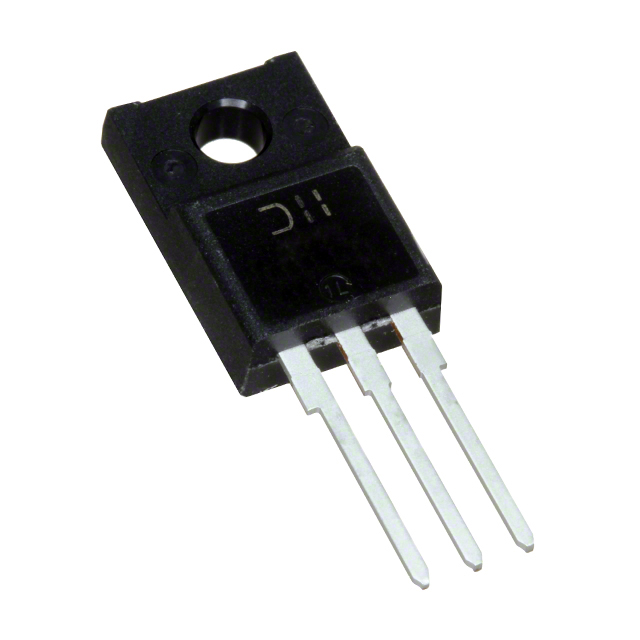

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DGTD65T15H2TF
Manufacturer/Brand:	Diodes Incorporated
Product description	IGBT600V-XITO-220AB
Datasheets:	DGTD65T15H2TF.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	64158 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 64158 pcs

Reference Price (In US Dollars)

1 pcs: $0.607

10 pcs: $0.545

100 pcs: $0.438

500 pcs: $0.36

1000 pcs: $0.298

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.607

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DGTD65T15H2TF

Part Number	DGTD65T15H2TF	Manufacturer	Diodes Incorporated
Description	IGBT600V-XITO-220AB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	64158 pcs	Data sheet	DGTD65T15H2TF.pdf
Voltage - Collector Emitter Breakdown (Max)	650V	Vce(on) (Max) @ Vge, Ic	2V @ 15V, 15A
Test Condition	400V, 15A, 10 Ohm, 15V	Td (on/off) @ 25°C	19ns/128ns
Switching Energy	270µJ (on), 86µJ (off)	Supplier Device Package	ITO-220AB
Series	-	Reverse Recovery Time (trr)	150ns
Power - Max	48W	Package / Case	TO-220-3 Full Pack, Isolated Tab
Other Names	DGTD65T15H2TFDI	Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Through Hole	Manufacturer Standard Lead Time	20 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	Standard
IGBT Type	Field Stop	Gate Charge	61nC
Detailed Description	IGBT Field Stop 650V 30A 48W Through Hole ITO-220AB	Current - Collector Pulsed (Icm)	60A
Current - Collector (Ic) (Max)	30A
