AP2511SN-7

Diodes Incorporated

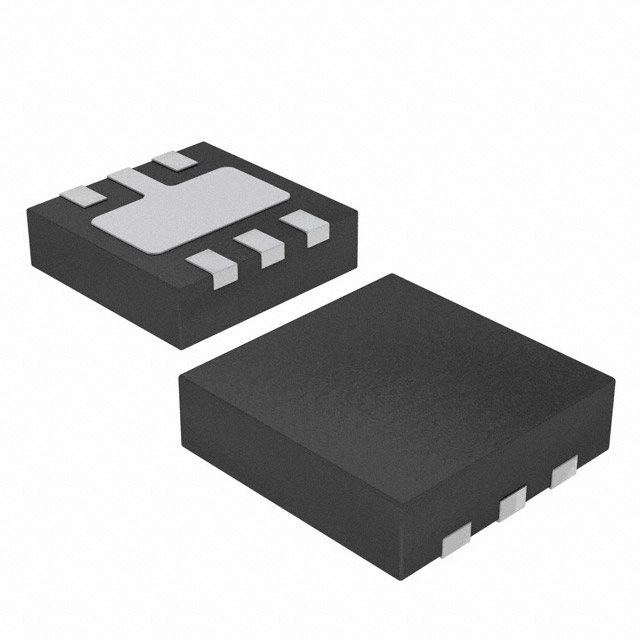

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AP2511SN-7
Manufacturer/Brand:	Diodes Incorporated
Product description	USB POWER SWITCH U-DFN2020-6
Datasheets:	AP2511SN-7.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	713028 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 713028 pcs

Reference Price (In US Dollars)

3000 pcs: $0.052

6000 pcs: $0.049

15000 pcs: $0.046

30000 pcs: $0.042

75000 pcs: $0.04

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.052

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AP2511SN-7

Part Number	AP2511SN-7	Manufacturer	Diodes Incorporated
Description	USB POWER SWITCH U-DFN2020-6	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	713028 pcs	Data sheet	AP2511SN-7.pdf
Voltage - Supply (Vcc/Vdd)	Not Required	Voltage - Load	2.7 V ~ 5.5 V
Switch Type	USB Switch	Supplier Device Package	6-DFN2020 (2x2)
Series	-	Rds On (Typ)	70 mOhm
Ratio - Input:Output	1:1	Packaging	Tape & Reel (TR)
Package / Case	6-UDFN Exposed Pad	Output Type	P-Channel
Output Configuration	High Side	Other Names	AP2511SN-7DITR
Operating Temperature	-40°C ~ 125°C (TJ)	Number of Outputs	1
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Interface	On/Off
Input Type	Non-Inverting	Features	Load Discharge, Status Flag
Fault Protection	Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO	Current - Output (Max)	2.5A
Base Part Number	AP2511
