Delta Electronics

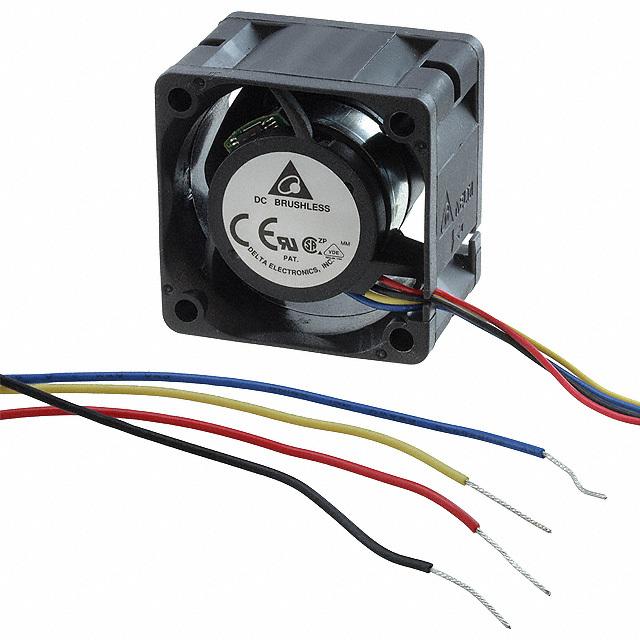

| Part Number | PFB0412EHN-TP06 | Manufacturer | Delta Electronics |
|---|---|---|---|
| Description | FAN AXIAL 40X28MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4469 pcs | Data sheet | PFB0412EHN-TP06.pdf |
| Width | 28.00mm | Weight | 0.104 lb (47.17g) |
| Voltage Range | 10.8 ~ 13.2VDC | Voltage - Rated | 12VDC |
| Termination | 4 Wire Leads | Static Pressure | 1.431 in H2O (356.5 Pa) |
| Size / Dimension | Square - 40mm L x 40mm H | Series | PFB |
| RPM | 16000 RPM | Power (Watts) | 6.00W |
| Other Names | 603-1618 PFB0412EHN-TP06-ND PFB0412EHNTP06 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 54.5 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Plastic | Material - Blade | Plastic |
| Manufacturer Standard Lead Time | 22 Weeks | Lifetime @ Temp. | 50000 Hrs @ 40°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | PWM Control, Speed Sensor (Tach) | Fan Type | Tubeaxial |
| Current Rating | 0.5A | Bearing Type | Ball |
| Approvals | CE, CSA, UL, VDE | Air Flow | 21.8 CFM (0.610m³/min) |
