Delta Electronics

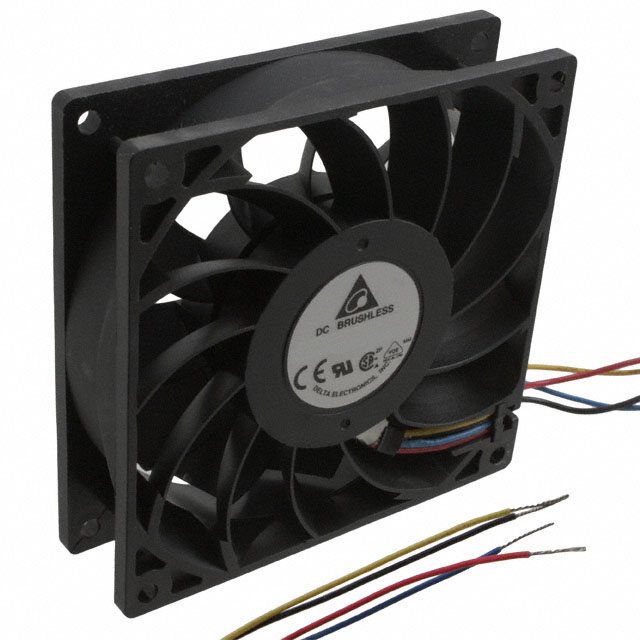

| Part Number | FFC0948BY7T | Manufacturer | Delta Electronics |
|---|---|---|---|
| Description | FAN AXIAL 92X25.4MM 48VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2613 pcs | Data sheet | FFC0948BY7T.pdf |
| Width | 25.40mm | Weight | 0.331 lb (150.14g) |
| Voltage Range | 36 ~ 75VDC | Voltage - Rated | 48VDC |
| Termination | 4 Wire Leads | Static Pressure | 0.355 in H2O (88.4 Pa) |
| Size / Dimension | Square - 92mm L x 92mm H | Series | FFC |
| RPM | 3900 RPM | Power (Watts) | 8.16W |
| Other Names | 603-1745 FFC0948B-EP FFC0948BEP |
Operating Temperature | -13 ~ 158°F (-25 ~ 70°C) |
| Noise | 49.5 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Plastic | Material - Blade | Plastic |
| Manufacturer Standard Lead Time | 22 Weeks | Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP56 - Dust Protected, Water Resistant |
| Features | GR-487, PWM Control, Speed Sensor (Tach) | Fan Type | Tubeaxial |
| Current Rating | 0.170A | Bearing Type | Ball |
| Approvals | CE, CSA, UL, VDE | Air Flow | 86.4 CFM (2.42m³/min) |
