Delta Electronics
| Part Number | FFB0412VHN-TP03 | Manufacturer | Delta Electronics |
|---|---|---|---|

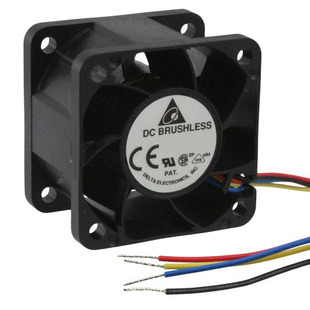

| Description | FAN AXIAL 40X28MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7393 pcs | Data sheet | FFB0412VHN-TP03.pdf |
| Width | 28.00mm | Weight | 0.07 lb (31.75g) |
| Voltage Range | 7 ~ 13.2VDC | Voltage - Rated | 12VDC |
| Termination | 4 Wire Leads | Static Pressure | 0.509 in H2O (126.8 Pa) |
| Size / Dimension | Square - 40mm L x 40mm H | Series | FFB |
| RPM | 9500 RPM | Power (Watts) | 1.92W |
| Other Names | 603-1206 FFB0412VHN-TP03-ND FFB0412VHNTP03 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 45.0 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Plastic | Material - Blade | Plastic |
| Lifetime @ Temp. | 70000 Hrs @ 40°C | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Features | PWM Control, Speed Sensor (Tach) |
| Fan Type | Tubeaxial | Current Rating | 0.160A |
| Bearing Type | Ball | Approvals | CE, CSA, UL, VDE |
| Air Flow | 15.8 CFM (0.442m³/min) |
