Delta Electronics

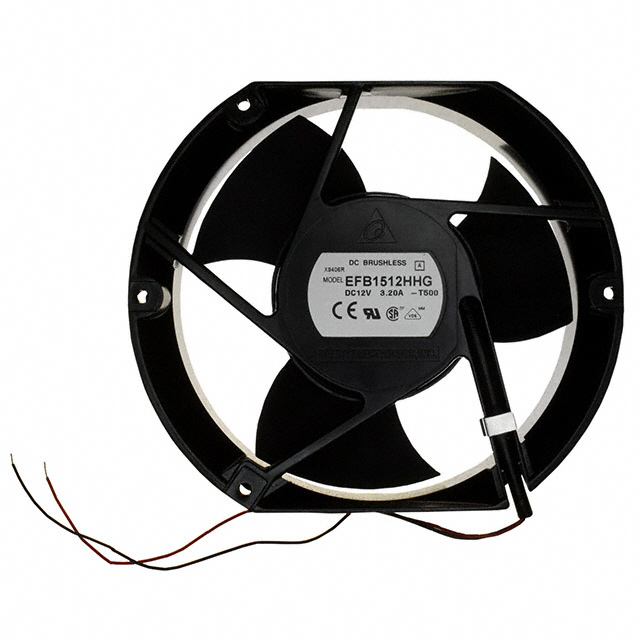

| Part Number | EFB1512HHG-T500 | Manufacturer | Delta Electronics |
|---|---|---|---|
| Description | FAN AXIAL 172X50.8MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1521 pcs | Data sheet | EFB1512HHG-T500.pdf |
| Width | 50.80mm | Weight | 1.9 lbs (861.8g) |
| Voltage Range | 8 ~ 14VDC | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.800 in H2O (199.3 Pa) |
| Size / Dimension | Rectangular/Rounded - 172mm L x 150mm H | Series | EFB |
| RPM | 3700 RPM | Power (Watts) | 21.50W |
| Other Names | 603-1204 EFB1512HHG-T500-ND EFB1512HHGT500 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 57.5 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Aluminum | Material - Blade | Plastic |
| Manufacturer Standard Lead Time | 22 Weeks | Lifetime @ Temp. | 80000 Hrs @ 40°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 1.79A | Bearing Type | Ball |
| Approvals | CE, CSA, UL, VDE | Air Flow | 279.7 CFM (7.83m³/min) |
