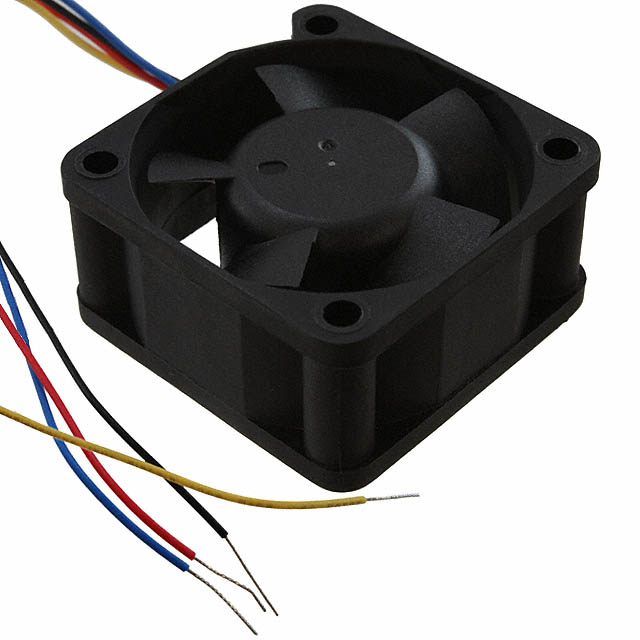

Delta Electronics
| Part Number | EFB0412VHD-SP05 | Manufacturer | Delta Electronics |
|---|---|---|---|
| Description | FAN AXIAL 40X20MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7049 pcs | Data sheet | EFB0412VHD-SP05.pdf |
| Width | 20.00mm | Weight | 0.073 lb (33.11g) |
| Voltage Range | 5 ~ 13.8VDC | Voltage - Rated | 12VDC |
| Termination | 4 Wire Leads | Static Pressure | 0.416 in H2O (103.6 Pa) |
| Size / Dimension | Square - 40mm L x 40mm H | Series | EFB |
| RPM | 9000 RPM | Power (Watts) | 1.44W |
| Other Names | 603-1697 EFB0412VHD-SP05-ND EFB0412VHDSP05 Q6407744 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 34.5 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Plastic | Material - Blade | Plastic |
| Manufacturer Standard Lead Time | 22 Weeks | Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | PWM Control, Speed Sensor (Tach) | Fan Type | Tubeaxial |
| Current Rating | 0.120A | Bearing Type | Ball |
| Approvals | CE, CSA, UL, VDE | Air Flow | 10.1 CFM (0.283m³/min) |
